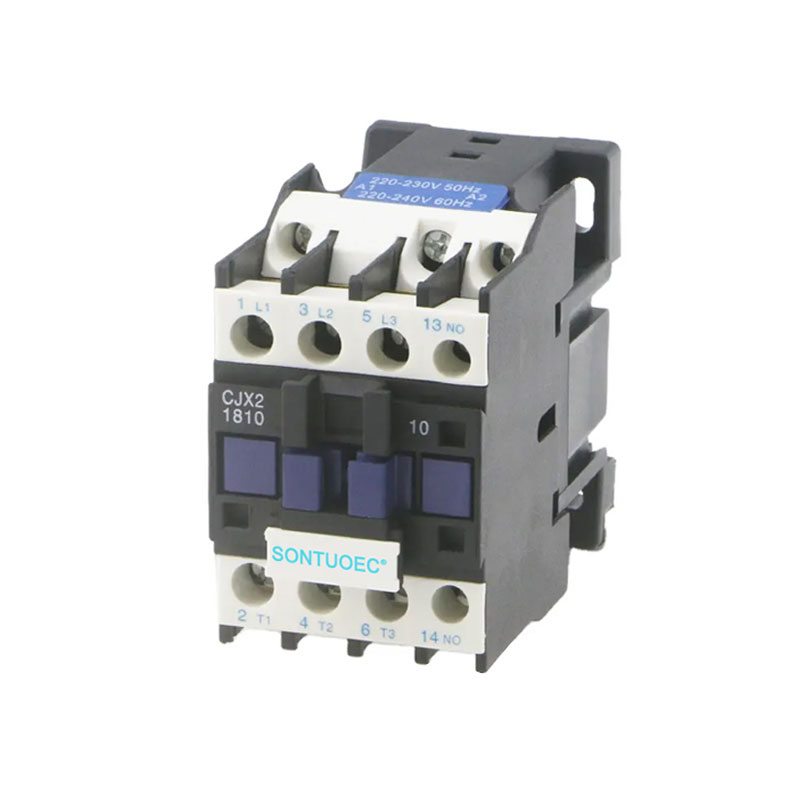

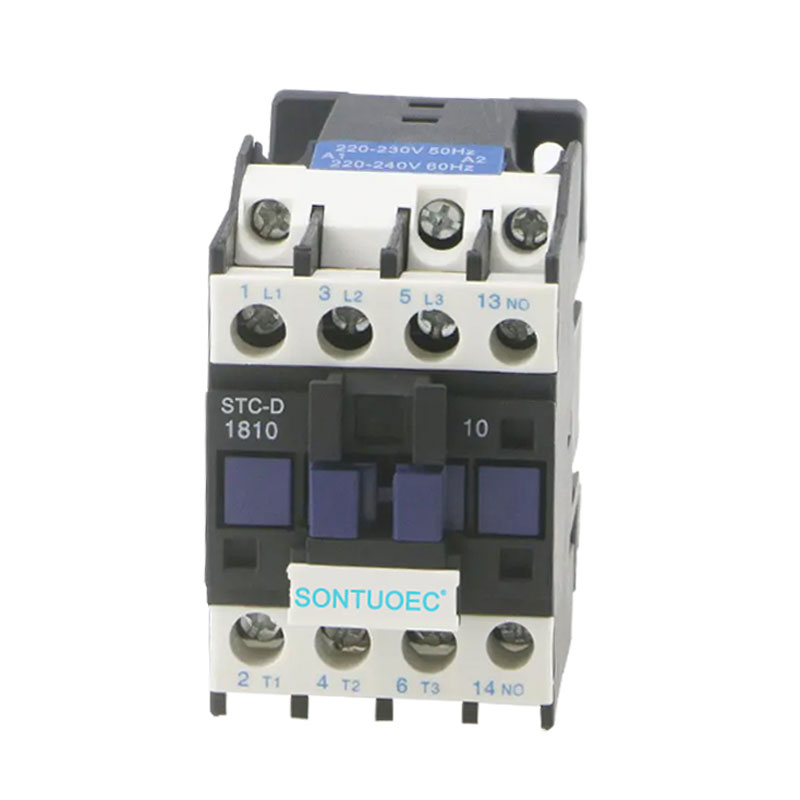

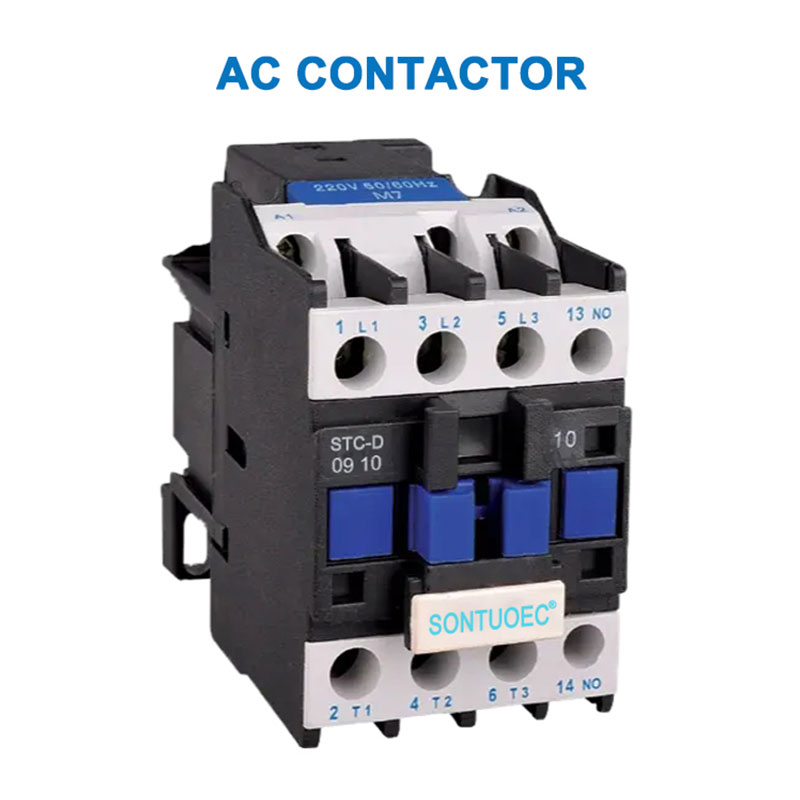

STC-D AC Contactor

STC-D AC Contactor abu ne na lantarki da ake amfani dashi don sarrafawa da nisa da akai-akai kunna ko kashe da'irorin AC. An fi amfani dashi don buɗewa da sarrafa kewayawa a cikin tsarin wutar lantarki da kuma kula da nesa na motoci, hasken wuta da sauran nauyin lantarki a cikin masana'antu na masana'antu.Alternating Current (AC) Contactor, watau STC-D AC Contactor, wani muhimmin kayan sarrafa wutar lantarki ne, yana taka rawar da ba za a iya maye gurbinsa ba a fagen tsarin wutar lantarki da sarrafa kayan aiki na masana'antu.

Samfura:STC-D

Aika tambaya

Bayanin Samfura

Nau'in		STC-D09	STC-D12	STC-D18	STC-D25	Saukewa: STC-D32	STC-D40	Saukewa: STC-D50	Saukewa: STC-D65	Saukewa: STC-D80	Saukewa: STC-D95
Ƙididdigar aiki na yanzu (A)	AC3	9	12	18	25	32	40	50	65	80	95
Ƙididdigar aiki na yanzu (A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Matsakaicin ma'aunin ƙarfi na lokaci 3 Motoci 50/60Hz AC-3	220/230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380/400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660/690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Ma'aunin zafi na halin yanzu (A)		20	20	32	40	50	60	80	80	125	125
Rayuwar lantarki	AC3 (x104)	100	100	100	100	80	80	60	60	60	60
Rayuwar lantarki	AC4 (x104)	20	20	20	20	20	15	15	15	10	10
Rayuwar injina (x104)		1000	1000	1000	1000	800	800	800	800	600	600
Adadin lambobin sadarwa	3P+ NO					3P+NC+NO
Adadin lambobin sadarwa	3P+NC					3P+NC+NO

Tsarin tsari da ƙa'idar aiki

Tsarin: STC-D AC Contactor galibi ya ƙunshi tsarin lantarki (ciki har da baƙin ƙarfe, coil da zobe na gajere, da sauransu), tsarin tuntuɓar (ciki har da babban lamba da lambar taimako) da na'urar kashe baka.

Ƙa'idar aiki: Lokacin da coil na STC-D AC Contactor ya sami kuzari, baƙin ƙarfe yana haifar da filin maganadisu, wanda ke jan hankalin armature kuma yana motsa lambobin sadarwa don yin aiki, ta yadda manyan lambobi da lambobin sadarwa suna rufe ko cire haɗin, ta haka ne ke sarrafa kashewar da'irar. Ana amfani da na'urar kashe baka don kashe baka lokacin da aka katse lambobin don kare lambobi daga lalacewa.

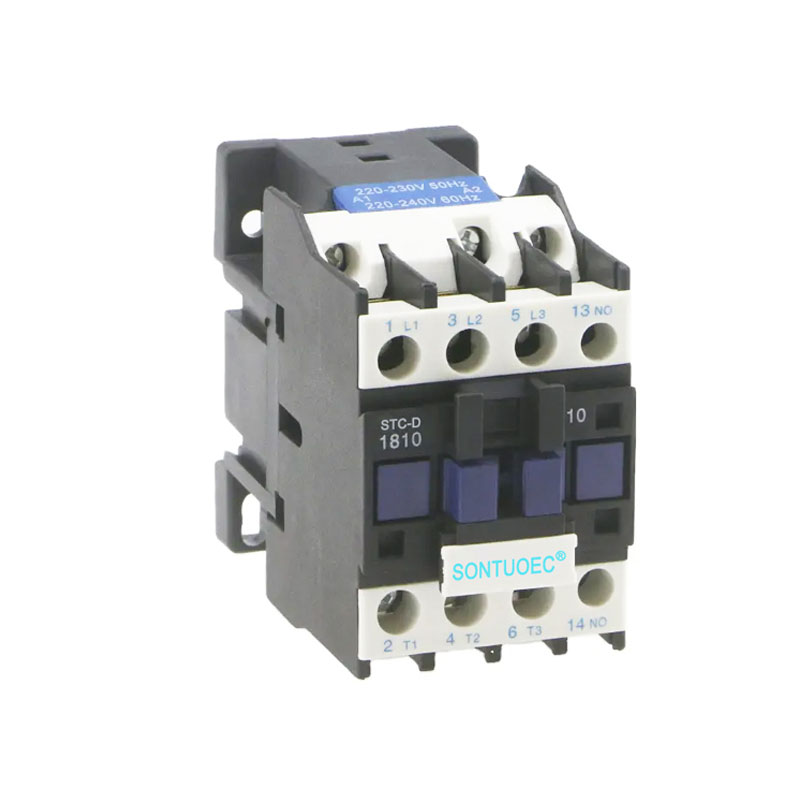

STC-D AC Contactor

Nau'i da Halaye

1. Nau'i:

Masu tuntuɓar STC-D AC ana iya rarrabasu zuwa nau'ikan iri daban-daban gwargwadon amfaninsu da aikinsu, kamar masu tuntuɓar masana'antu, masu haɗin ginin gini da gida. Samfuran gama gari sun haɗa da jerin CJ (misali jerin CJX2, jerin CJ20, jerin CJT1) da jerin samfuran ABB, Siemens, Schneider da sauran samfuran.

2. Features:

Amintaccen aiki: STC-D AC Contactors suna da babban amincin aiki da kwanciyar hankali, kuma suna iya jure manyan igiyoyi da ƙarfin lantarki.

Aiki mai tsayayye: tsarin tuntuɓar sa an yi shi ne da kayan inganci mai kyau tare da ingantaccen ƙarfin lantarki da juriya mai zafi mai zafi.

Ingantacciyar kulawa: STC-D AC Contactors suna da ƙaramin tsari kuma suna da sauƙin shigarwa da kulawa.

Yanayin aikace-aikace

STC-D AC Contactors suna da fa'idar aikace-aikace a tsarin wutar lantarki, sarrafa kansa na masana'antu, gini da lantarki na gida. Alal misali, a cikin tsarin wutar lantarki, ana iya amfani da shi don sarrafa farawa-tasha da juyawa na motar; a cikin sarrafa kansa na masana'antu, ana iya amfani da shi don sarrafa farawa na kayan aikin lantarki daban-daban akan layin samarwa; a cikin ginin da lantarki na gida, ana iya amfani da shi don sarrafa kunnawa / kashe kayan aiki, kamar hasken wuta da kwandishan.
