Stls-2(Cjx2) Mai Tuntuɓi Mai Haɓaka Makanikai

Stls-2(Cjx2) Series Mechanical Interlocking Contactor ya dace da amfani a cikin da'irori har zuwa ƙimar ƙarfin lantarki 660V AC 50Hz, 620A na yanzu, don sarrafa motar mai canzawa. Wannan na'ura mai haɗawa ta inji tana tabbatar da canjin tuntuɓar masu tuntuɓar biyu masu iya canzawa. Ya dace da ka'idodin IEC60947-4-1.

Samfura:STLS-2(CJX2)

Aika tambaya

Bayanin Samfura

Nau'in		STLS-2	STLS-2	STLS-2	STLS-2	STLS-2	STLS-2	STLS-2	STLS-2	STLS-2	STLS-2
		9	12	18	25	32	40	50	63	80	95
									60
Ƙimar insulatio mai ƙima		660	660	660	660	660	660	660	660	660	660
na al'ada thermal		20	24	32	40	50	60	75	80	110	125
halin yanzu		20	24	32	40	50	60	75	80	110	125
An ƙididdige aiki		9	12	16	25	32	40	50	63	80	95
halin yanzu		9	12	16	25	32	40	50	63	80	95
sarrafawa	220V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
wuta (kw)	380V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	35	37	45	45
	440V	4	5.5	9	11	15	22	30	37	45	45
	660V	5.5	7.5	10	15	18.5	30	33	37	45	45
Lura		Shigar da					Shigar da
		relays na iya amfani da sukurori biyu					relays iya uku
		da kuma amfani da 35mm					screws da kuma amfani da
		shigarwa dogo					75mm ko 35mm shigarwa
							dogo

Tsarin da halaye

Tsarin:

3P AC Contactor yawanci ya ƙunshi tsarin lantarki (ciki har da coil, core, da dai sauransu), tsarin tuntuɓar (ciki har da babban lamba da lambar taimako), na'urar kashe baka da harsashi da sauran sassa. Daga cikin su, ana amfani da babban lambar sadarwa don ɗaukar babban halin yanzu, kuma ana amfani da haɗin haɗin gwiwa don gane watsawa da amsawar siginar sarrafawa.

Siffofin:

Tare da lambobi masu zaman kansu guda uku, zai iya sarrafa iko mai hawa uku da layin sifili ɗaya a lokaci guda.

An yi tsarin tuntuɓar kayan aiki mai inganci tare da kyakkyawan aiki da juriya.

Tsarin lantarki yana da isassun ƙarfin tsotsa don dogaro da gaske da sakin lambobi.

Na'urar kashe baka na iya kashe baka da aka samar da kyau lokacin da aka cire haɗin lambobi, yana kare lambobin sadarwa daga lalacewa.

Stls-2(Cjx2) Series Mechanical Interlocking Contactor ya dace da amfani a cikin da'irori da ƙimar ƙarfin lantarki har zuwa 660V AC 50Hz ko 60Hz, rated halin yanzu har zuwa 95A, don yin & karya, akai-akai farawa & sarrafa motar AC. Haɗe tare da toshe lambar sadarwa mai taimako, jinkirin mai ƙidayar lokaci & na'ura mai haɗawa da na'ura da dai sauransu, ya zama mai tuntuɓar jinkiri, mai haɗawa na inji, mai farawa tauraro-delta. Tare da gudun ba da sanda na thermal, an haɗa shi cikin mafarin lantarki. An samar da Contactor bisa ga IEC 60947-1.

Ka'idar Aiki

Lokacin da coil na 3P AC Contactor ya sami kuzari, baƙin ƙarfe yana haifar da maganadisu kuma yana jan tsarin lamba don rufewa, ta haka haɗa wutar lantarki mai matakai uku da waya sifili. Lokacin da aka kashe wutar lantarki, ainihin abin ya rasa magnetism kuma tsarin sadarwar ya rabu a ƙarƙashin aikin bazara, don haka cire haɗin wutar lantarki mai matakai uku daga layin sifili. Ta wannan hanyar, 3P AC Contactor zai iya gane ikon sarrafa kayan lantarki.

Yanayin aikace-aikace

Ana amfani da 3P AC Contactor a cikin tsarin wutar lantarki daban-daban waɗanda ke buƙatar sarrafa wutar lantarki mai kashi uku da layin sifili ɗaya a lokaci guda, kamar:

Filin sarrafa kansa na masana'antu: ana amfani da shi don sarrafa farawar motar, tsayawa da juyawa ayyuka.

Tsarin wutar lantarki: ana amfani da shi don gane kula da nesa da kuma kare tsarin wutar lantarki.

Gine-gine ta atomatik: ana amfani dashi don sarrafa farawa da dakatar da hasken wuta, kwandishan da sauran kayan aiki.

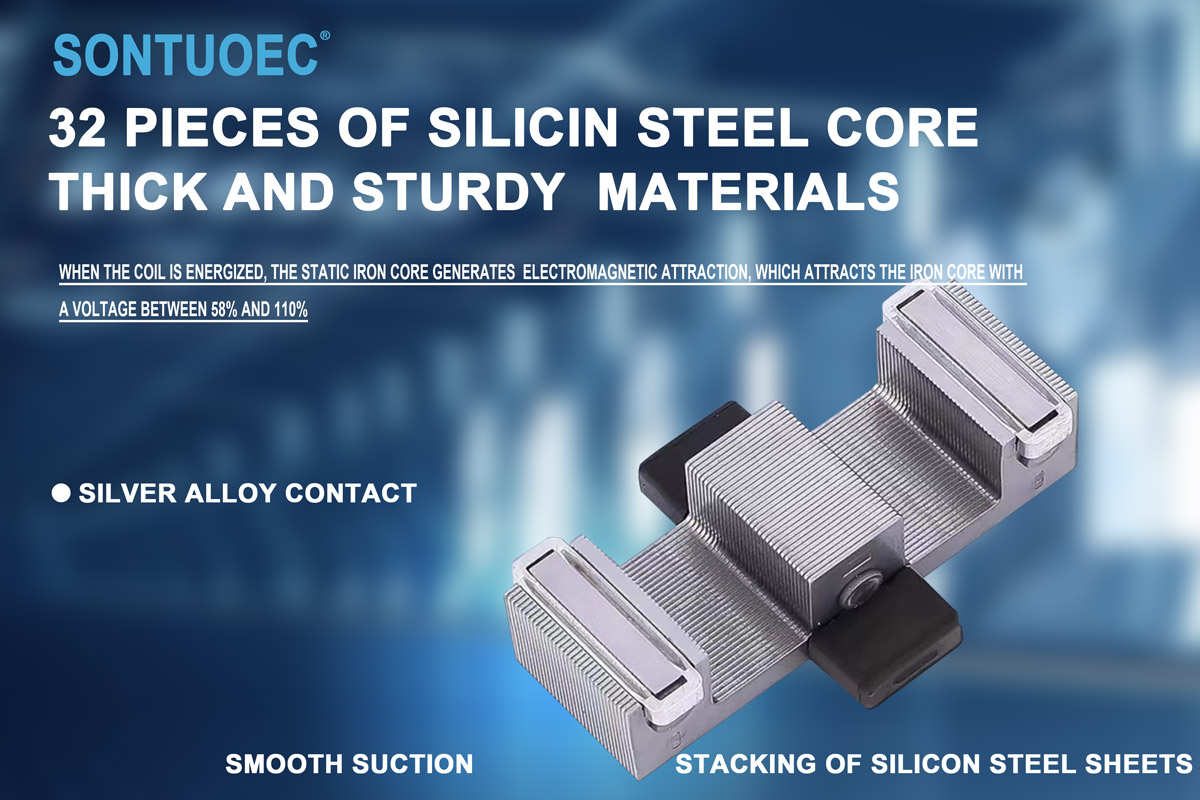

Stls-2(Cjx2)Series Mechanical Interlocking Contactor
