Lc1-n Rubuta ACT

LC1-n Rubuta ACT actara haruffa sun dace da amfani a cikin da'irori tare da AC 50Hz ko 600V, har zuwa 660V (har zuwa 690v don wasu samfuran) da kuma gushewa har zuwa 95A. Ana amfani dashi don haɗawa da kuma karya da'irori akan nesa nesa, da kuma yawan farawa da sarrafa AC.

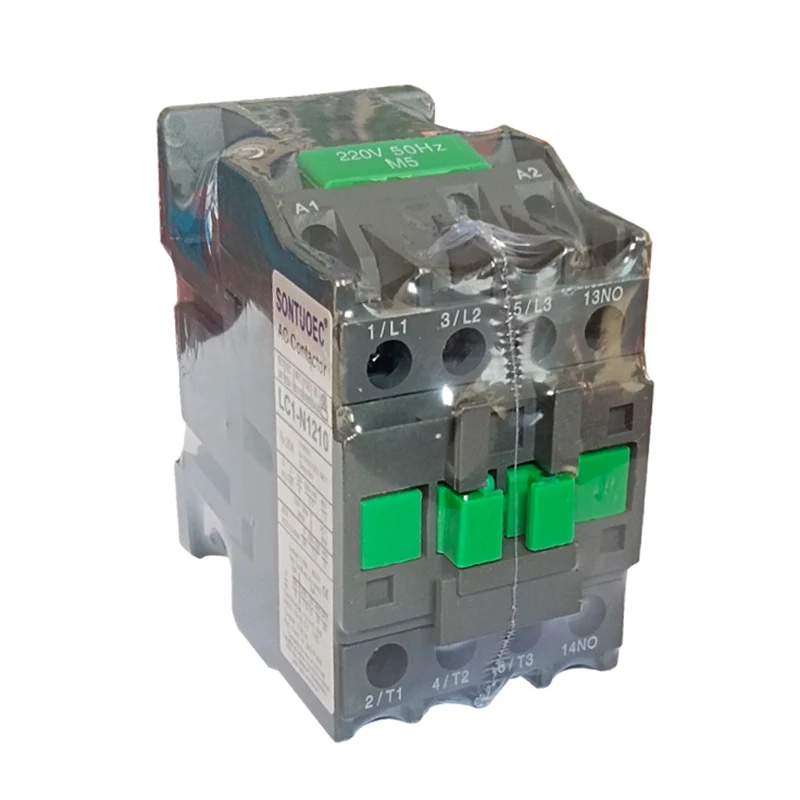

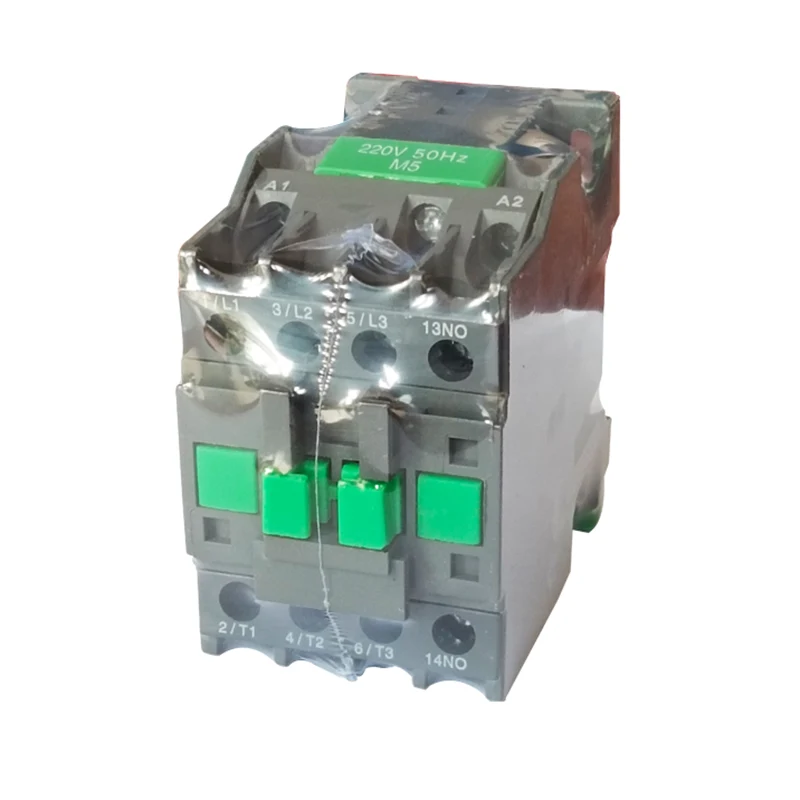

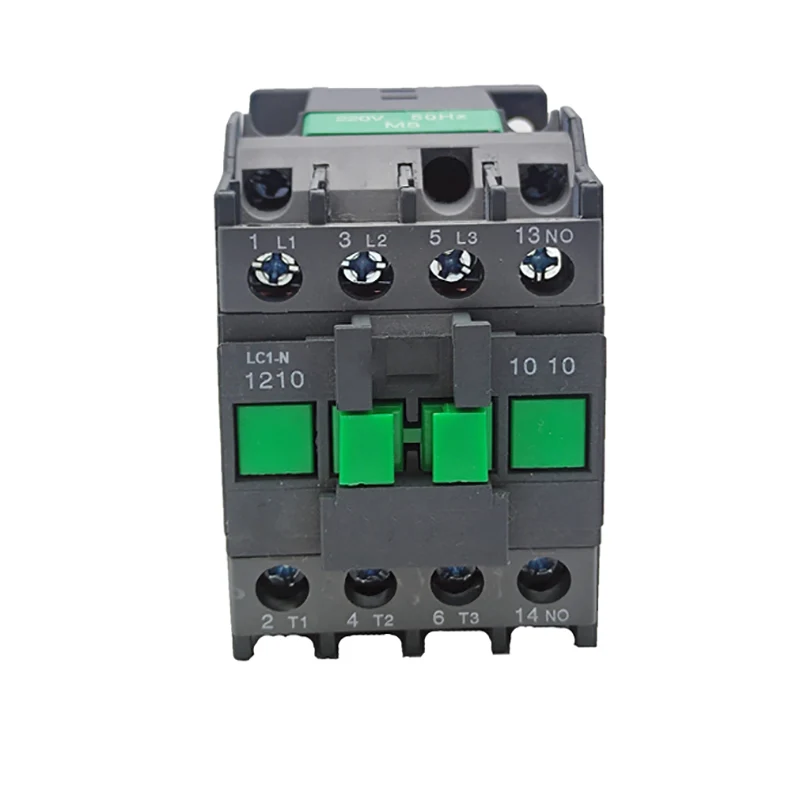

Samfura:LC1-N1210

Aika tambaya

Bayanin Samfura

Iri		LCI-N09	LC1-N12	LC1-N18	LC1-N25	LC1-N32	LC1-N40	LC1-N50	LC1-N65	LC1-N80	LC1-N95
Rated Attom na yanzu (a)	AC3	9	12	18	25	32	40	50	65	80	95
Rated Attom na yanzu (a)	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Rikici na Kayayyaki motors 50 / 60hzzzc incatorory ac-3	220 / 230v	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380 / 400v	4	5.5	7.5	11	15	18.5	22	30	37	45
	415v	4	5.5	9	11	15	22	25	37	45	45
	500v	5.5	7.5	10	15	18.5	22	30	37	55	55
	660 / 690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Doctor Deck na yanzu (a)		20	20	32	40	50	60	80	80	125	125
Rayuwar lantarki	AC3 (X104)	100	100	100	100	80	80	60	60	60	60
Rayuwar lantarki	AC4 (X104)	20	20	20	20	20	15	15	15	10	10
Rayuwar inji (X104)		1000	1000	1000	1000	800	800	800	800	600	600
Yawan lambobin sadarwa	3P + A'a					3P + nc + babu
Yawan lambobin sadarwa	3P + nc					3P + nc + babu

Fasalin tsari

Tsarin Modular: lc1-n Rubuta ACT Adireshin Modular tare da cikakken aikin hade, wanda ya dace da masu amfani da su zaɓar da haɗuwa gwargwadon bukatunsu.

Tsarin lantarki: wanda ya hada da murhun lantarki da baƙin ƙarfe, wanda shine muhimmin sashi na mai neman sadaka, don fitar da ƙulli da cire haɗin.

Tsarin tuntuɓar: gami da babban lamba da taimako na taimako. Ana amfani da babban lamba don haɗawa da kuma karya babban da'irar da sarrafa mafi girma a halin yanzu; A taimako na taimako yana cikin da'irar sarrafawa don biyan bukatun hanyoyin sarrafawa daban-daban.

ARC Mai Rarraba tsarin: sanye take da na'urar ta fitar da ruwa mai kyau, kuma rage lambobin kararwar magunguna.

Ka'idar aiki

Lokacin da Circtuit Circuit yake da kuzari, Coilmomagnetungnetic Cloil yana haifar da Magnetic filin da zai jawo sadarwar lambobin don rufewa. Lokacin da Ciron Circuit shine ke da ƙarfi, filin ƙarfe ya ɓace, an cire baƙin ƙarfe a ƙarƙashin aikin bazara, an cire lambar, kuma babban da'irar injin din an cire.
