Amincewar Jerin McCB 3P

Kyakkyawan ka'idodin aiki na amincin tsaro 3p ya dogara ne da haɗin magnetic mai amsawa da mai amsawa. A lokacin da aka ɗauki nauyin da'ira ko gajere na faruwa a cikin da'awa, na yanzu zai karu da nutsuwa, da kuma jawowar maganganu zai iya fahimtar wannan rashin daidaito da sauri. A halin yanzu, mai amsawa yana gano canje-canje na zazzabi a cikin da'ira kuma yana haifar da McCB don yanke ƙimar saiti, don haka magance lalacewar kayan aiki da hatsarin wuta.

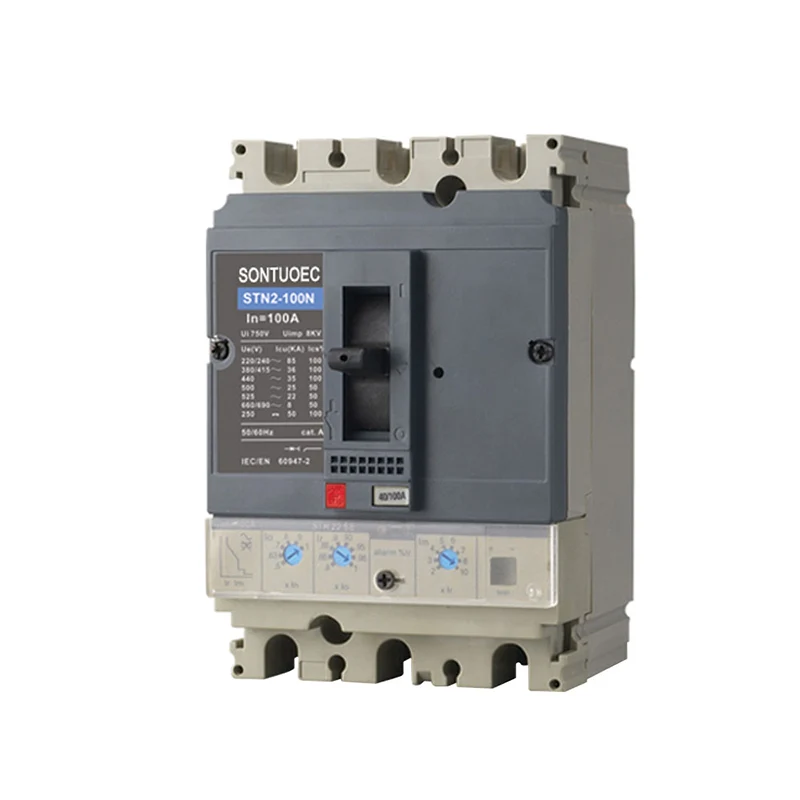

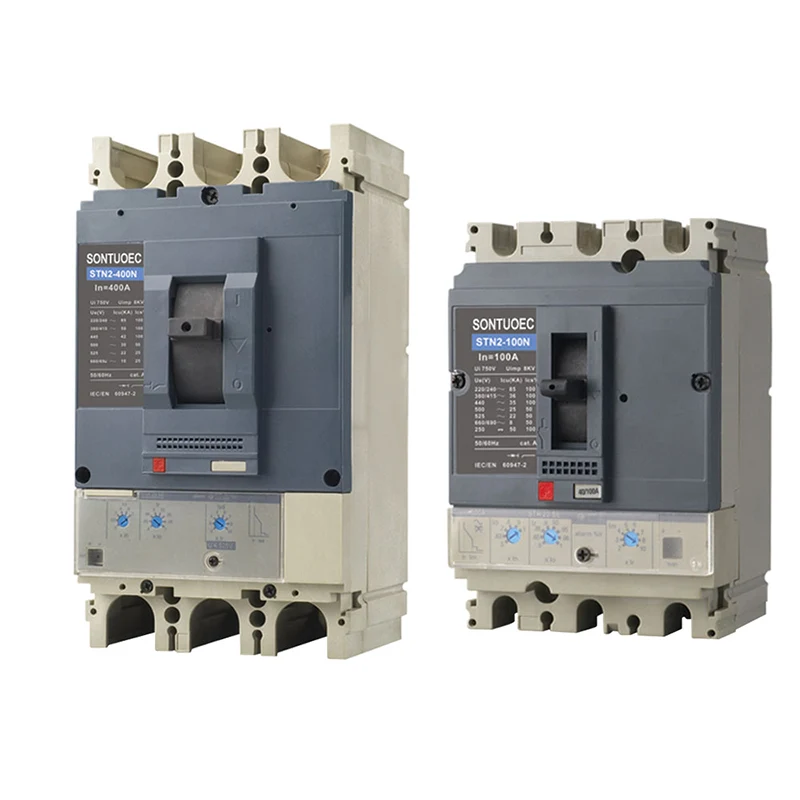

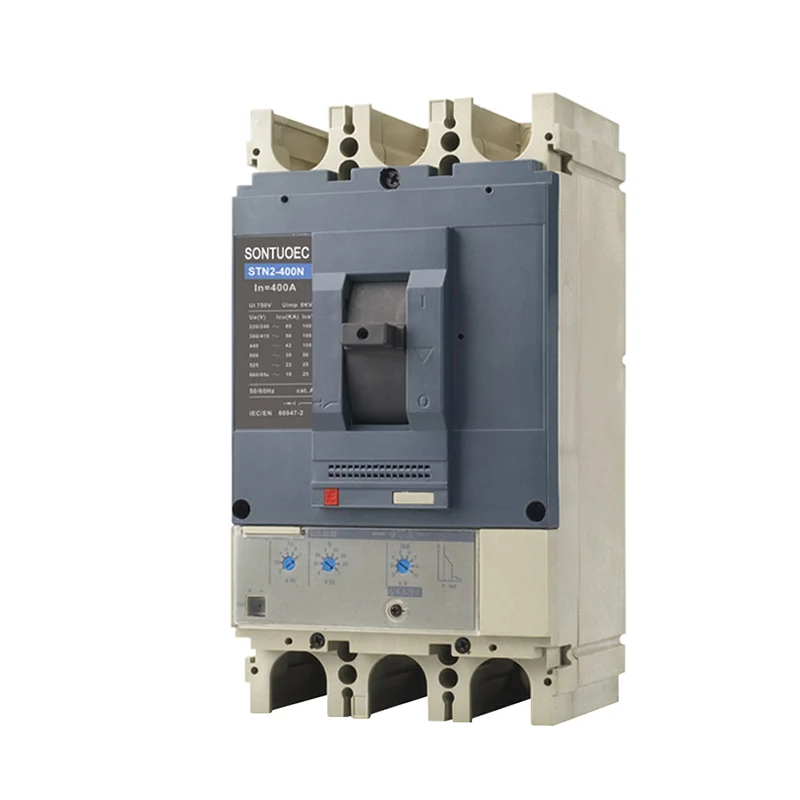

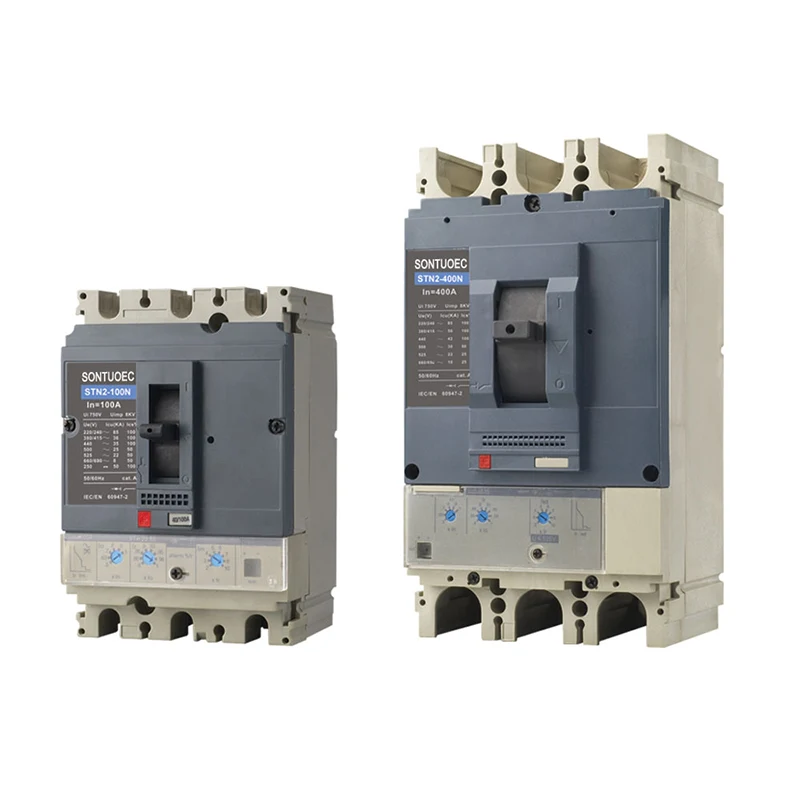

Samfura:STN2-100

Aika tambaya

Bayanin Samfura

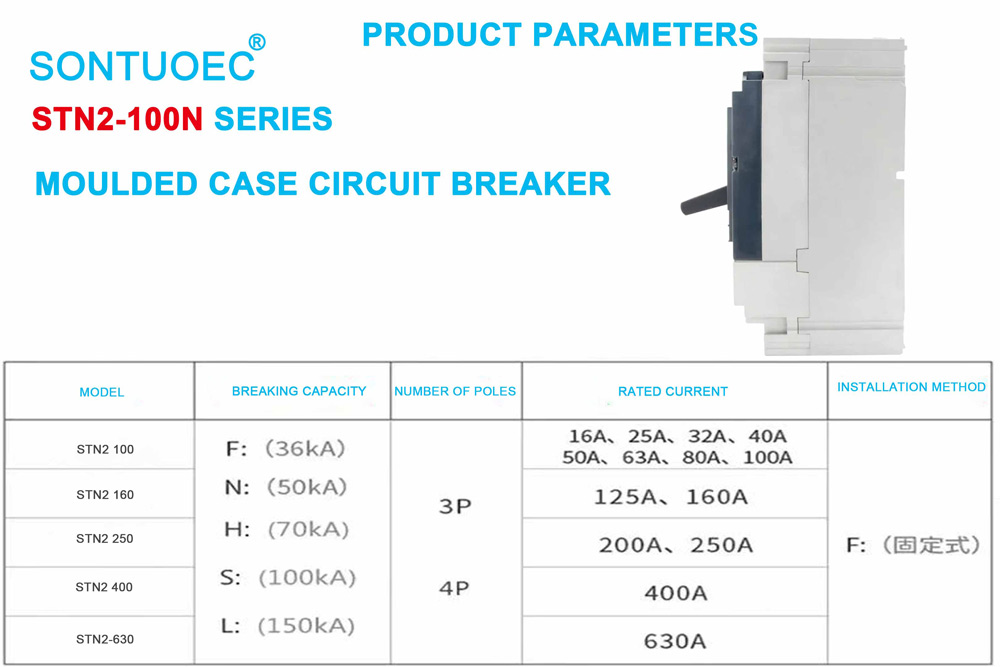

Muhawara	STN2-100				STN2-160				STN2-250				STN2-400				Sty2-630
Firam na yanzu (a)	100				160				250				400				630
Yawan sandunan	3		4		3		4		3		4		3		4		3		4
Na karshe ya watse iyalai (icu, KA)	F	N		H	F	N		H	F	N		H	F	N		H	F	N		H
AC220 / 240V (daga)	85	90		100	85	90		100	85	90		100	40	85		100	40	85		100
AC380 / 415v (ka)	36	50		70	36	50		70	36	50		70	36	50		70	36	50		70
Rated Innulation voltage	AC800V
Rated Aikin Voltage	AC690V
Rated na yanzu, Triping mai zafi, Tmd, a	63, 80, 100				80, 100, 125, 160				125, 160, 200, 250				-				-
Rated na yanzu, lantarki Ninka, mic, a	40, 100				40, 100, 160				100, 160, 250				250, 400				250, 400, 630
Auxilary, faɗakarwa, Laifi Kaya	Ko / sd / sde / sdx
Shunt & a karkashin VolTage COIL	MX / Mn
Rayuwar inji	50000				40000				20000				15000				15000
Rayuwar lantarki	30000				20000				10000				6000				4000

Amincewar aminci McCB 3p / 4p yana nuna sabuwar manufa ta iyakance ta yanzu da fasahar masana'antu na yanzu, wanda aka nuna ta hanyar ingantaccen tsari, cike da isasshen abu, da flashetover mai tsayi. Circuit yana sanye da overload, gajere-da'ira da na'urar kariya kariya, don kare kayan aikin samar da wutar lantarki daga lalacewa.

Sifofin samfur

Tsarin BIPLAR: MCCB 3p / 4p na ƙira, wanda ke nufin zai iya sarrafa alloli biyu da wuta a lokaci guda, tabbatar da aminci da kwanciyar hankali na kewaye.

Babban daidaito: Tare da babban daidaitaccen aikin ganowa na yanzu, yana iya tantance yanayin kuskure a cikin da'ira kuma yanke da'awar cikin lokaci.

Babban dogaro: An yi shi da ingantaccen fasaha da kayan, yana da kyakkyawar dogaro da kwanciyar hankali, kuma yana iya aiki koyaushe a cikin mahalli daban-daban.

Sauki don shigar da ci gaba: ƙira mai ma'ana, mai sauƙin kafawa, kuma a lokaci guda mai sauƙi don kulawa da maye gurbin, rage aikin aikin da farashin mai amfani.
