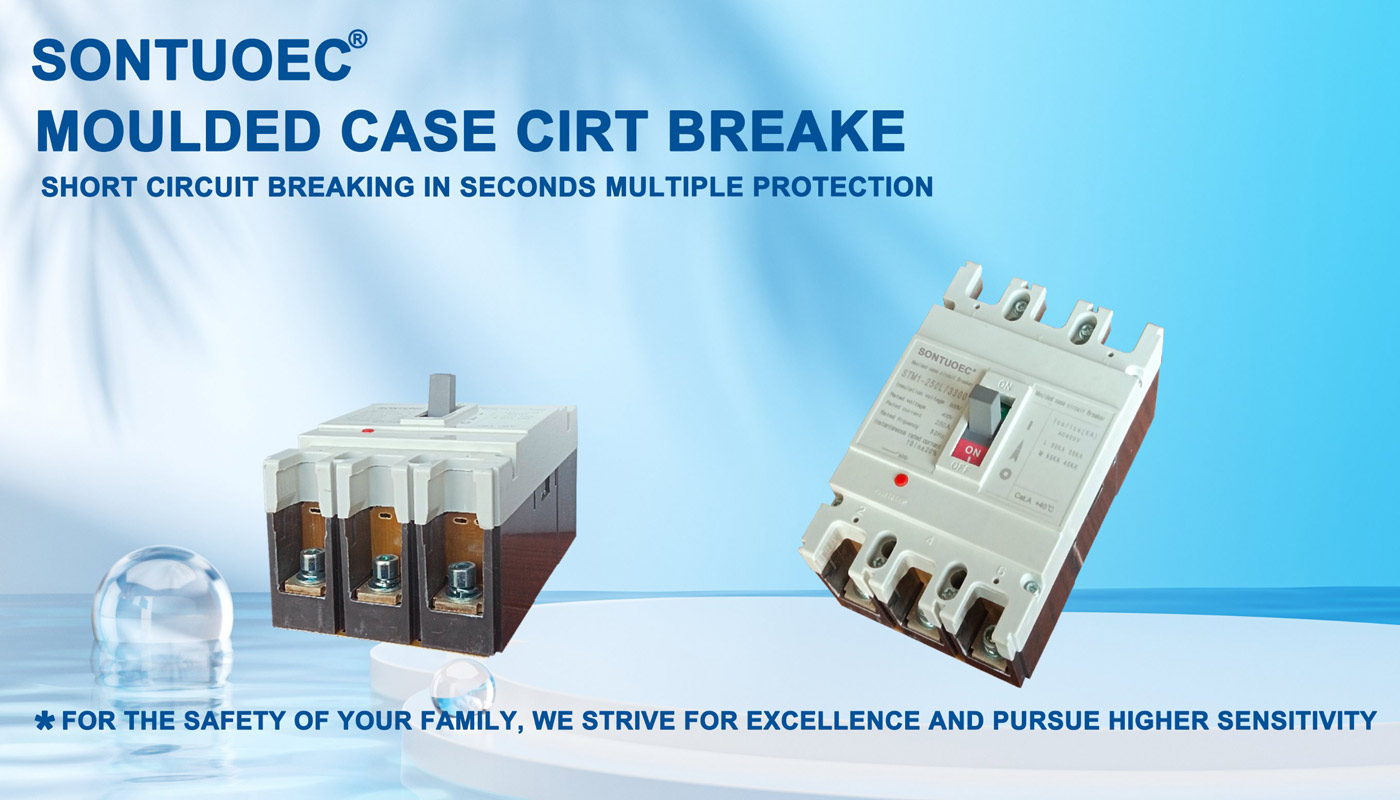

Lantarki Molded Case Breaker

Lantarki Molded Case Circuit Breaker wani nau'i ne na kayan lantarki tare da ayyukan kariya kamar nauyi, gajeriyar kewayawa da ƙarƙashin ƙarfin lantarki. Ka’idar aikinta ita ce, a karkashin yanayin aiki na yau da kullun, na’urar kewayo tana cikin rufaffiyar yanayi, idan aka yi lodin da’ira, gajere ko kuma a karkashin wutar lantarki da sauran kura-kurai, na’urar za ta cire haɗin na’urar kai tsaye, ta yadda za a kare da’ira da amincin kayan aiki.

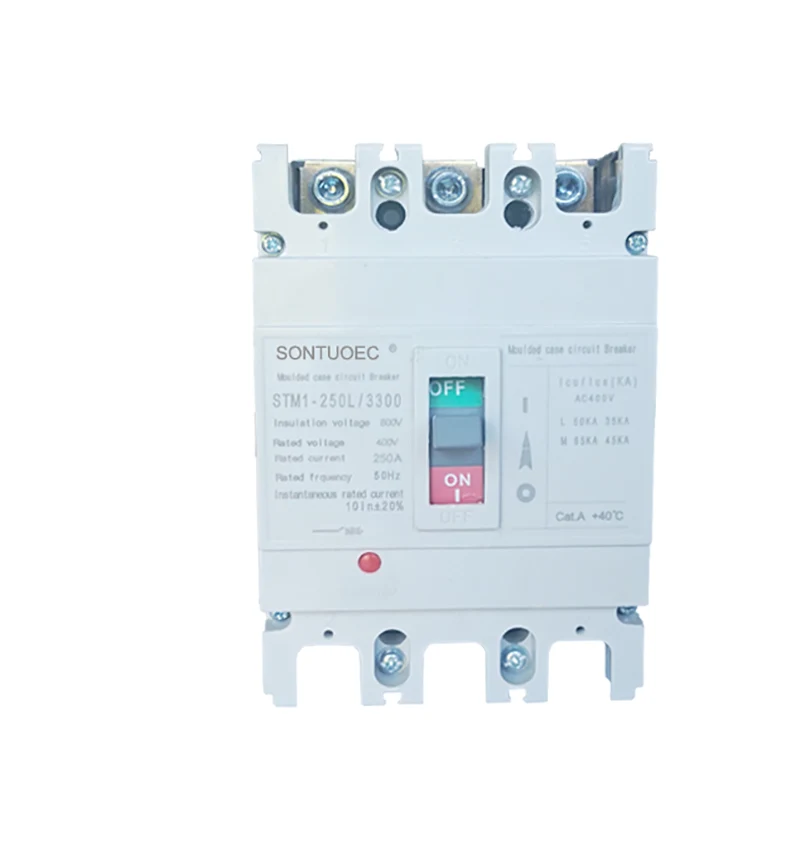

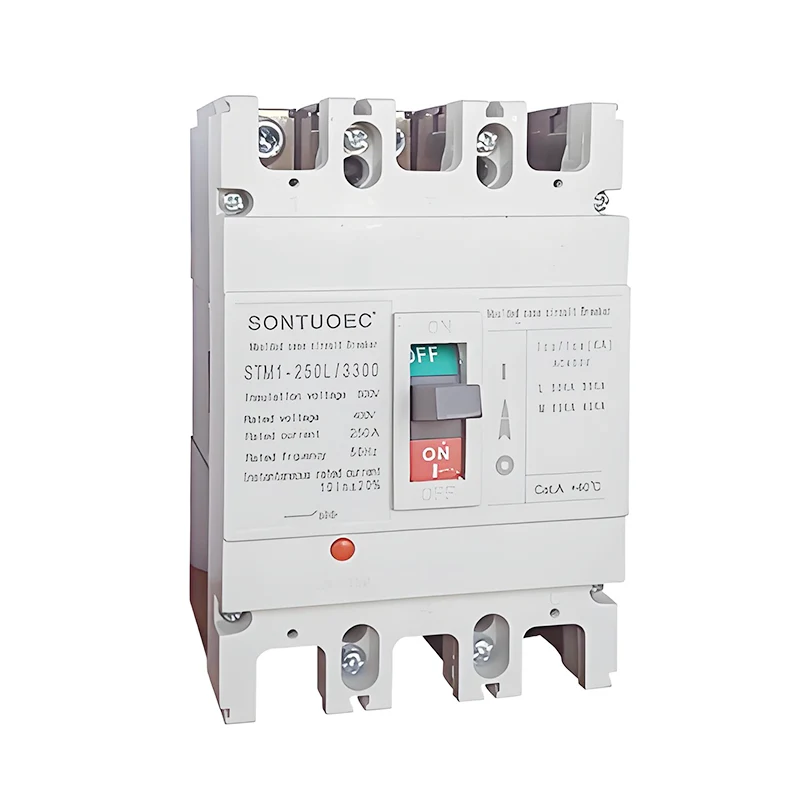

Samfura:STM1-250L

Aika tambaya

Bayanin Samfura

Samfura		Saukewa: STM1-125			Saukewa: STM1-250			Saukewa: STM1-400			Saukewa: STM1-630			Saukewa: STM1-800			Saukewa: STM1-1250
An ƙididdige Cortirucus curert		125			250			400			630			800			1250
rated Curert hn(A)		16,20,25,32,40.50			100,125,140,160,			250,315,350,400			400,500,630			630,700,800			80,010,001,250
		63,80,100,125			180,200,225.25
Ƙimar aiki Votage Ue(V)DC								500,550,7			501,000
rated Isuation Votage UKV)		1000			1000			1500			1500			1500			1500
Uimp (KV)
Gwajin Votage One Miute(V)		3500			3500			3500			3500			3500			3500
Karya Ƙarfin (KA)		L	M	H	L	M	H	L	M	H	L	M	H	L	M	H	L	M	H
ku (1cs=75% ku)	250V	25	35	50	35	50	65	35	50	65	35	50	65	50	65	80	50	65	80
	500V	25	25	50	35	35	65	35	35	65	35	35	65	50	50	80	50	50	80
	750V	25	15	50	35	25	65	35	25	65	35	25	65	50	35	80	50	35	80
	1000V	25	10	50	35	15	65	35	15	65	35	15	65	50	20	80	50	20	80
Injiniya He	Lokaci	7000			7000			4000			4000			2500			2000
Rayuwar Lantarki	Lokaci	2000			2000			1000			1000			800			600
Lokacin Breaking (ms)		20			20			20			20			20			20
Wurin Shigarwa		Kowane wuri
karfin bolator		iya
Daidaitawa		IEC 60947-2, IEC60947-1, GB 14048, GB 14048-2
Zazzabi(C)		25 ℃ - 50 ℃
Rashin Kariya		b20
Na'urorin haɗi		NA/SD/MX
Arcing Distance(mm)		250

Samfura A'A.	Saukewa: STM1-250L/3300
Matsakaici mai kashe Arc	Iska
MA'AURATA:	Saukewa: IEC60947-2
Tsarin	MCCB
Nau'in	Moulede case Circuit Mai karyawa
Takaddun shaida	CE
Amincewa	CE, ISO9001
Lokacin Bayarwa	Ciki Kwanaki 20
Ƙayyadaddun bayanai	63A-630A
Asalin	Wenzhou Zhejiang
Ƙarfin samarwa	2000 guda / mako
Gudu	Nau'in Al'ada Mai Sauraron Wuta
Shigarwa	Kafaffen
Lambar Sanduna	3P 4P
Aiki	Na al'ada Mai Sauraron Wuta, Kariyar gazawar dawafi, Kariya na yau da kullun
Farashin	Masana'anta Farashin
Lokacin Garanti	watanni 12
Kunshin sufuri	Ciki Akwatin/Katon
Alamar kasuwanci	SOTUOEC,WZSTEC,SONTUNE,IMDEC
HS Code	8536200000

Tsarin da halaye

Tsarin: lantarki gyare-gyaren yanayin da'ira yakan ƙunshi tsarin lamba, tsarin kashe baka, tsarin aiki, ɗan wasan gaba, harsashi da sauran sassa.

Siffofin:

Yana da babban ƙarfin karyewa da ingantaccen kwanciyar hankali na thermal.

An yi harsashi da wuta-retardant, kayan kariya na baka, tare da babban aikin aminci.

Tsarin aiki yana da sassauƙa kuma abin dogaro, wanda ya dace da masu amfani don yin aiki da hannu ko lantarki.

Mai cire haɗin yana da ayyuka na kariya iri-iri, kuma yana iya aiwatar da ayyuka masu dacewa bisa ga kuskure daban-daban na kewaye.

Aiki da amfani

Aiki: Lantarki gyare-gyaren yanayin da'ira yana da ayyuka daban-daban na kariya kamar kariya ta wuce gona da iri, kariyar gajeriyar kewayawa, ƙarƙashin kariyar wutar lantarki da kariyar zubar ruwa. Daga cikin su, kariya daga wuce gona da iri na nufin idan da’irar ta yi yawa, na’urar da ke dauke da na’urar za ta iya cire haɗin da’irar kai tsaye don hana lalacewar na’urar saboda tsananin zafi; Kariyar gajeriyar hanya tana nufin cewa lokacin da gajeriyar kewayawa ta faru a cikin da'ira, na'urar na'urar na iya yanke kuskure da sauri don hana wuta da sauran haɗarin aminci; Kariyar ƙarancin wutar lantarki yana nufin cewa lokacin da ƙarfin wutar lantarki ya yi ƙasa da ƙimar da aka ƙididdigewa, na'urar ta atomatik na iya cire haɗin da'irar don kare kayan aiki daga lalacewa; kuma kariyar yabo yana nufin cewa lokacin da ɗigogi ya faru a cikin kewaye, na'urar kashe wutar lantarki na iya yanke wutar lantarki akan lokaci don kare lafiyar mutum. Kariyar zubar da ruwa na nufin cewa na'urar kashe wutar lantarki na iya yanke wutar lantarki a cikin lokacin da aka samu yabo a cikin da'irar don kare lafiyar mutum.

Amfani: Ana amfani da na'urorin da'ira mai ƙera wutar lantarki a cikin tsarin lantarki a wuraren zama, kasuwanci, masana'antu da wuraren sufuri. A cikin filin zama, ana amfani da shi don kare lafiyar da'irori na gida da kayan lantarki; a cikin filin kasuwanci, ana amfani da shi don kare tsarin lantarki na manyan gine-gine da wuraren kasuwanci; a cikin masana'antar masana'antu, ana amfani da shi don sarrafawa da kare amincin aiki na kayan aikin masana'anta da injuna; a cikin filin sufuri, ana amfani da shi don kare aikin kwanciyar hankali na fitilun zirga-zirga, siginar jirgin kasa da sauran kayan aiki.
