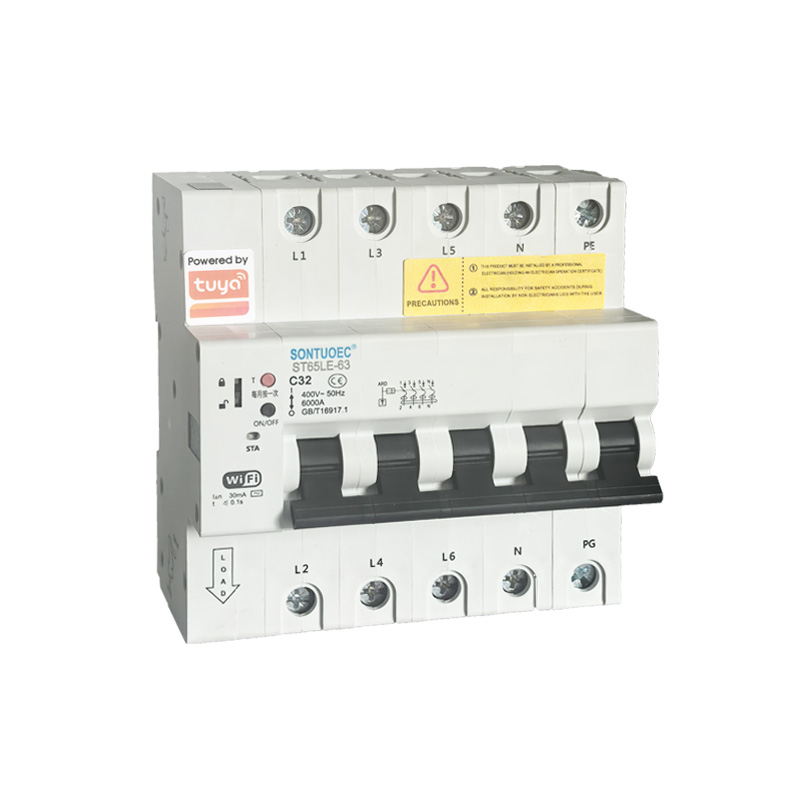

WiFi ST65LE-63wf2 Series Multi Aiki na IoT mai hankali RCBO Mai Rarraba kewaye

BAYANI:

	Daidaitawa		IEC/EN  60898-1
Siffofin lantarki	rated halin yanzu In	A	1,2,4,6,10,16,20,25,32,40,50,63
	Sandunansu	P	1,2,3,4
	Ƙimar wutar lantarki Ue	V	AC   230/400;  240/415
	Insulation ƙarfin lantarki Ui	V	500
	Ƙididdigar mita	Hz	50/60
	An ƙididdige ƙarfin karya	A	4500  ;6000
	Ƙimar ƙwaƙƙwarar ƙarfin ƙarfin juriya (1.2/50)Uimp	V	4000
	Dielectric gwajin ƙarfin lantarki a ind.Freq.na 1 min	Kv	2
	Matsayin gurɓatawa		2
	Thermo-magnetic saki halayyar		B,C,D
Siffofin injina	Rayuwar lantarki	t	4000
	Rayuwar injina	t	10000
	Digiri na kariya		IP20
	Zazzabi na magana don saiti	ºC	30
	na thermal element
	Yanayin yanayi	ºC	-5 ~ + 40 (Aikace-aikace na musamman don Allah koma zuwa
	(tare da matsakaicin yau da kullun ≤35ºC)		gyaran yanayin zafi)
	Yanayin ajiya	ºC	-25-70
Shigarwa	Nau'in haɗin tasha		Cable/Pin-type basbar
	Girman tasha sama/ƙasa don kebul	mm2	25
		AWG	18-3
	Girman therminal saman/ƙasa don mashaya bas	mm2	25
		AWG	18-3
	Ƙunƙarar ƙarfi	N*m	2
		In-lbs	18

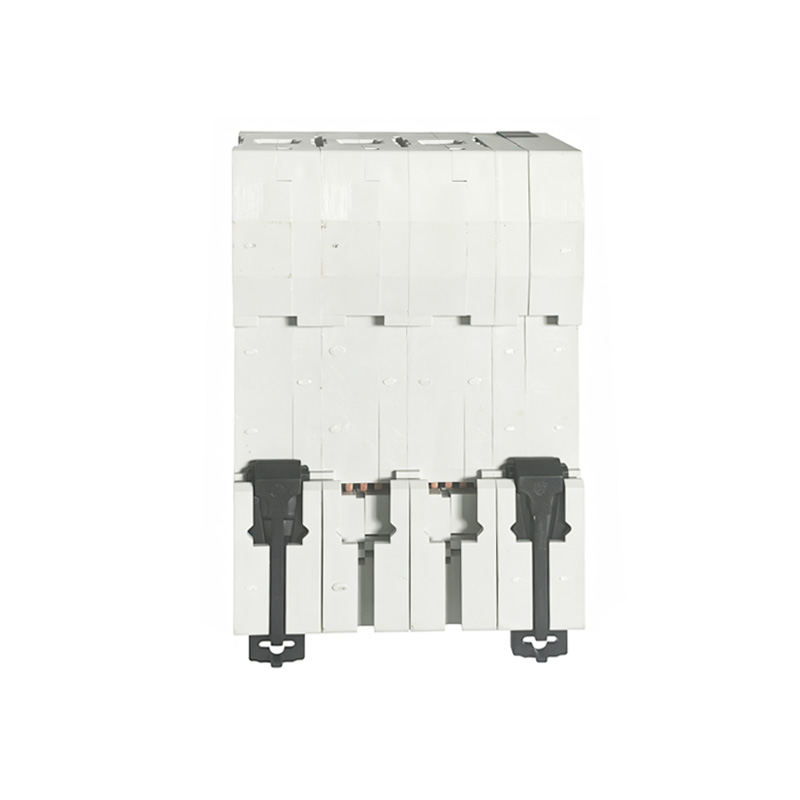

	Yin hawa		akan DIN dogo EN 60715 (35mm) ta hanyar na'urar shirin bidiyo mai sauri
	Haɗin kai		Daga sama da kasa

Wi-Fi Smart Circuit Breaker shine na'urar kariya ta kewayawa tare da haɗin haɗin fasahar sadarwar Wi-Fi, wanda ke ba masu amfani damar sarrafa yanayin sauyawa na da'ira a kowane lokaci, ko'ina ta hanyar wayar hannu ko wata na'ura mai wayo. Wannan na'ura mai watsewa ba wai tana ba da kima na gargajiya kawai da kariyar gajeriyar kewayawa ba, har ma yana kawo sauƙi da sassaucin da ba a taɓa gani ba ga masu amfani ta hanyar haɗin Wi-Fi.

Babban Halayen Aiki

ST65LE-63  jerin WiFi Smart Circuit Breaker shine canji na fasaha mai aiki da yawa wanda ke haɗa ayyukan auna wutar lantarki, fiye da kima, gajeriyar kewayawa, sama da ƙarƙashin wutar lantarki, ɗigogi, kariya daga zafin jiki, buɗewa da rufewa mai nisa, lokaci, sadarwar hanyar sadarwa da sauransu. Ana iya amfani da ko'ina a cikin smart ikon management wurare kamar kasuwanci, noma, makarantu, asibitoci, hotels, nisha wurare, tashoshi, al'adu relics kariya raka'a, birane titi fitilu management andcontrol, kuma za a iya yadu amfani da makamashi amfani management a masana'antu da ma'adinai Enterprises, ofishin gine-gine da sauran wurare.STL7-100WF yana da aikin RS485 irin ƙarfin lantarki aiki da kuma a kan ko kasa.

Aikace-aikace

Ana iya amfani da wannan na'ura mai wayo na WIFI mai hankali a cikin gida, masana'antu, sduent dormitroy, filin gona, ayyukan birni kuma yana iya sarrafa famfo ruwa mai nisa, hita ruwa, injin dumama ƙasa, da sauransu.

Aiki

Wannan  sake rufe da'ira ya dace da 50Hz/60Hz, 230/400V 0~125A da'ira waɗanda ke da aikin kamar kariya ta wuce gona da iri, kariyar gajeriyar kewayawa da keɓe kariya. A halin yanzu, wannan na'ura mai wayo mai wayo yana da aikin kamar yadda aka kunna oof/kunna nesa ta duniya ta wayar hannu mai wayo.
