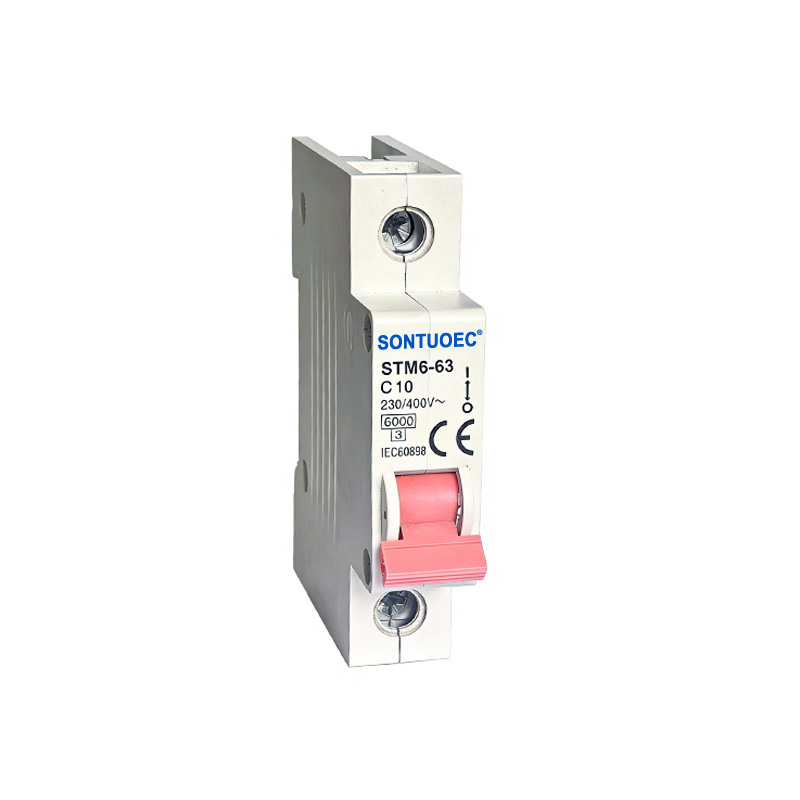

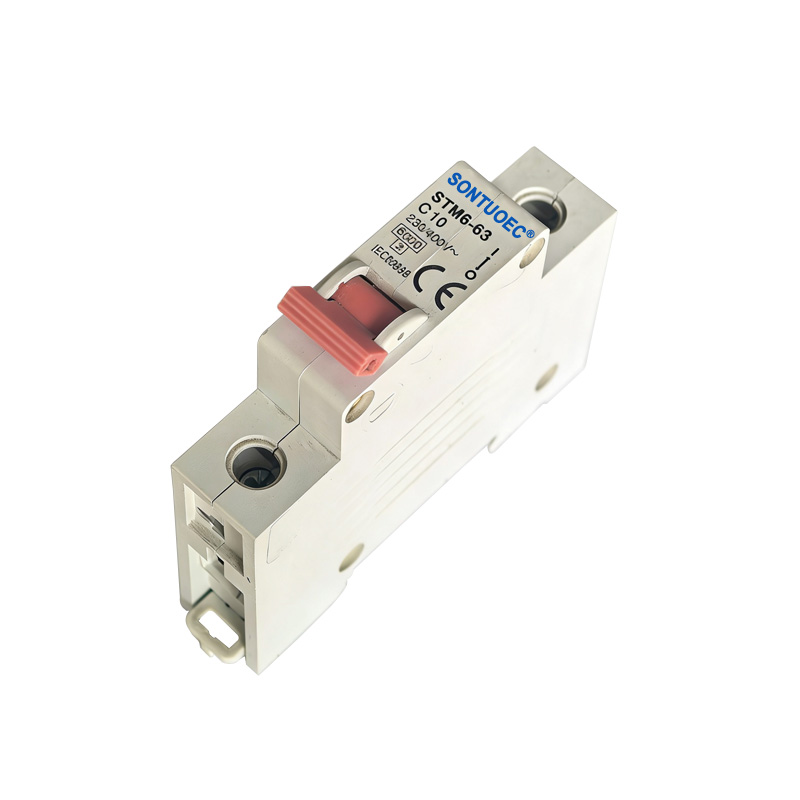

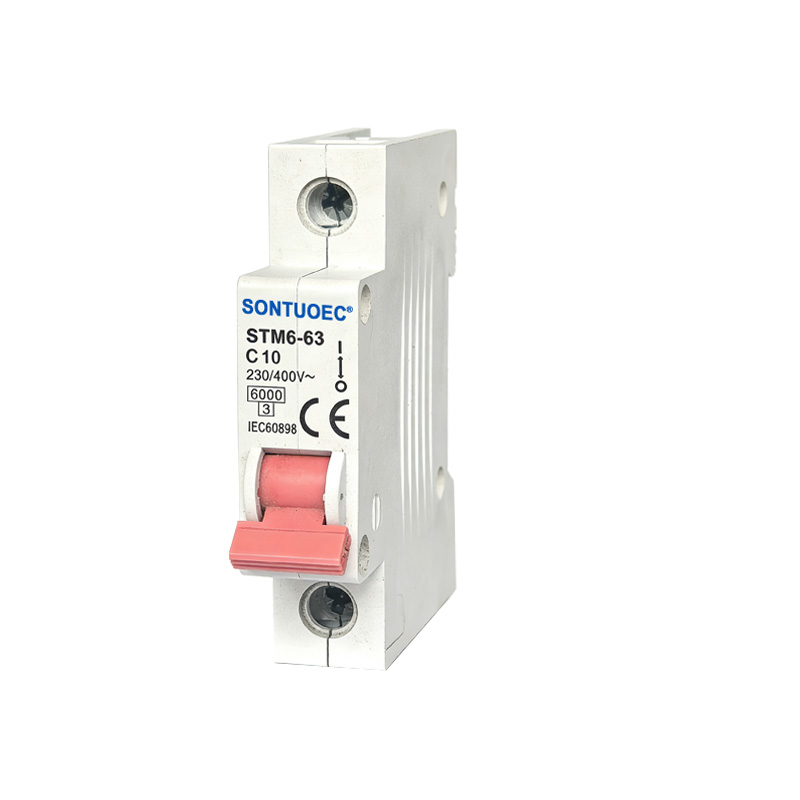

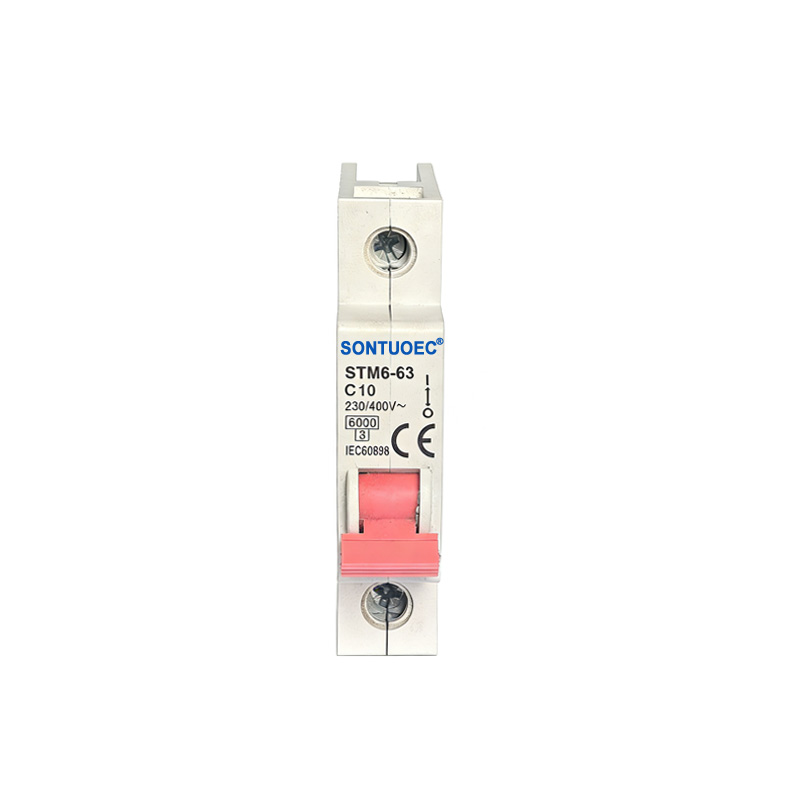

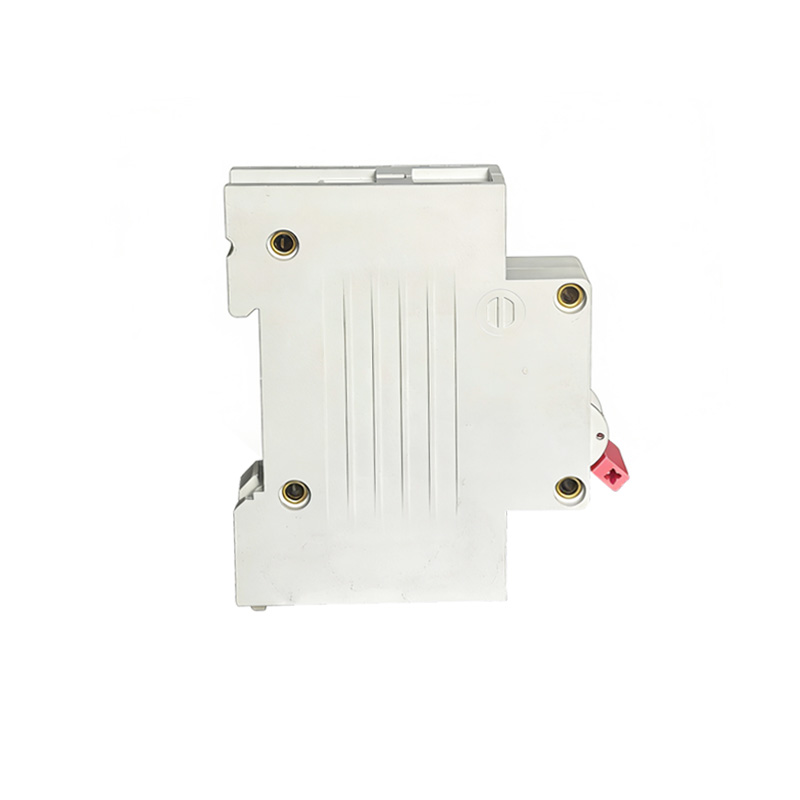

Sontuoec Stm6-63 6ka Miniature Circuit Breaker 230V MCB

SONTUOEC daya ce daga cikin masu samar da kayayyaki/masu sana'a na kasar Sin da suka kware wajen kera kananan na'urorin lantarki daban-daban STM6-63 series high breaking cap mini circuit breaker ana amfani da AC 50/60Hz, karfin wutar lantarki na 230V 3, 4 sanduna 400V, wanda aka ƙididdige halin yanzu zuwa 63A don kariyar wuce gona da iri da gajeriyar kewayawa da kuma don sauyawa mara iyaka a ƙarƙashin yanayin al'ada. Ana amfani da shi sosai don masana'antu, kasuwanci da iyali. Wannan samfurin ya dace da ƙa'idodin IEC60898.

Samfura:STM6-63

Aika tambaya

Bayanin Samfura

Ƙayyadaddun bayanai:

Wurin Asalin:	Liushi,ueqing,Wenzhou,Zhejiang, China
Sunan Alama:	SONTUOEC, STUOEC,SONTUNE,SONTUOC,WZSTEC
Sunan samfur:	Miniature Circuit Breaker / MCB
Nau'in:	Mini
Lambar Samfura:	Saukewa: STM6-63
Ƙarfin Ƙarfin Ƙarfin Wuta (V)	B,C,D
Ƙimar Wutar Lantarki:	230V/400VAC
Ƙimar Yanzu:	1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 60,63A
Karya Ƙarfin:	6KA
Matsakaicin ƙididdiga:	50/60Hz

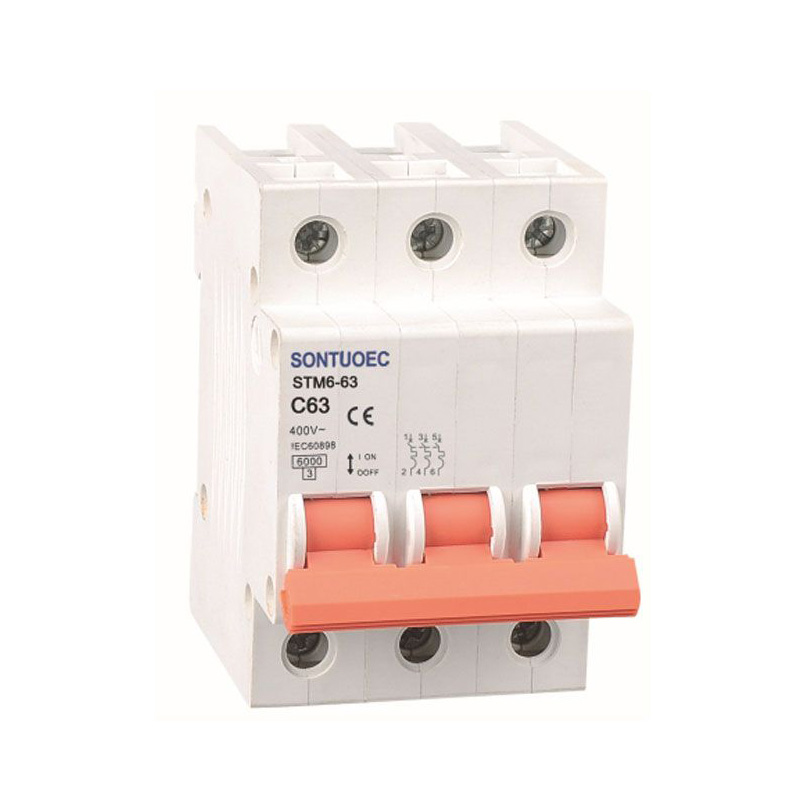

Adadin Sanduna:	1P, 2P, 3P,, 4P
Tsayi:	≤2000m
Yanayin yanayi:	-5 ~ 40ºC
Nisa:	18mm/Pole
Daidaito:	IEC60898, GB10963
Nau'in Kariya:	obalodi kariya, gajeren kewaye kariya
Nau'in Tafiya:	nau'in thermal
Kashi:	TH 35mm din dogo
Ƙarfin Waya:	≤25mm²
Matsakaicin Mitar Aiki:	1A-32A, 240 40A-63A, 120
