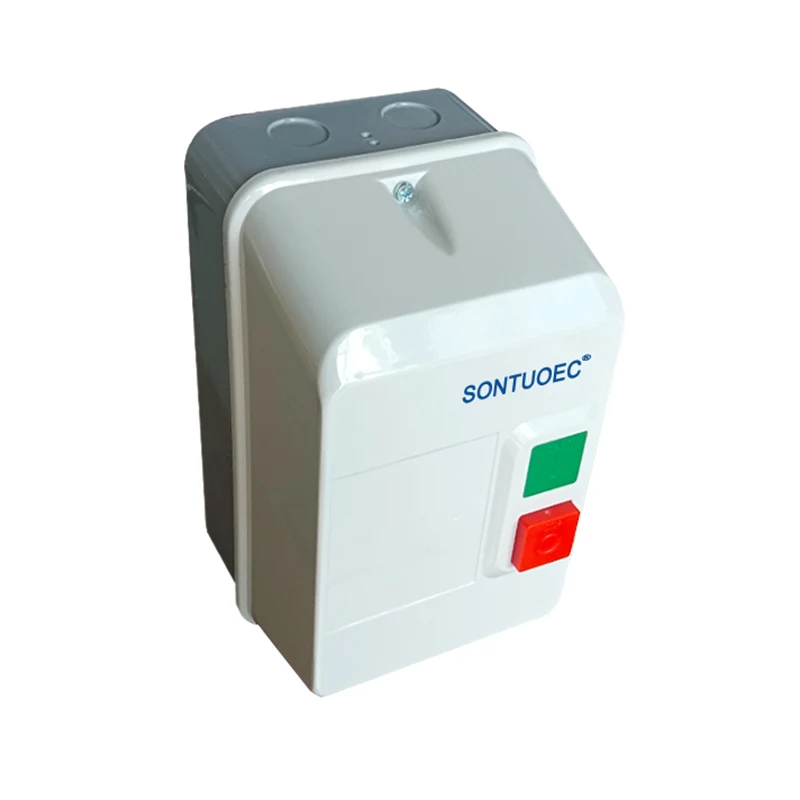

Magnetic Fara (DOL)

Farantar Magnetic (dol) Motar, I.e., ana amfani da sigar magnetic don sarrafa farawa da dakatar da motar (ko motors). Magnetic Switches taka taka muhimmiyar rawa a nan ta hanyar sarrafa kashewa ta hanyar canzawa bisa ga canje-canje a filin sihiri na waje, don haka ya fahimci ikon motar.

Aika tambaya

Bayanin Samfura

Muhawara

Yanayin Samfurin No.and na musamman	SLE1-09 da 12	Ninka biyu a keɓe, ya kiyaye Tolp49 (3) ko, F659 (4)
Keɓaɓɓen wuri	SE1-18 da 25	Ninki biyu a cikin keɓe, mai kariya ta TOLP427 (3) ko, F5577 (4)
	SE1-32 da 95	Matal, LP65 zuwa 559
Gudanar da (Motton 2 MOTTons murfin rufe)	SE1-32 da 95	1 Green Fara Button '1', 1Red DOWNT / TOENSESSESS '' '
Haɗini	SE1-32 da 95	Ikon lantarki da sarrafa masu binciken

Babban sigogi na fasaha:

Iri		Sace1-9	SLU1-12	SLU1-18	SE1-25	SL1-32	SLU1-40	Sle1-50	Sle1-65	Sace1-80	Sace1-95
KW / HP (AC-3) Refed Wuya (AC-3) IEC60947747-4	220v	2.2 / 3	3/4	4 / 5.5	5.5 / 7.5	7.5 / 10	11/5	15/20	18.5 / 25	22/35	25/35
KW / HP (AC-3) Refed Wuya (AC-3) IEC60947747-4	380v	4 / 5.5	5.5 / 7.5	7.5 / 10	11/15	15/20	18.5 / 25	22/30	30/40	37/50	45/60
Reted na yanzu (AC-3) GB14048.4	220v	9	12	15	21	26	36	52	63	75	86
Reted na yanzu (AC-3) GB14048.4	380v	9	12	16	21	25	37	43	59	72	85
Reted dumama halin yanzu (a)			25	32	40	50	60	80		125
An yiwa invuted Volage (v) 660
Appicary lamba Ac-15	Hulɗa	na misali	1No				1No + 1NC
	Reted na yanzu (a)	220v	1.6
	Reted na yanzu (a)	380v	0.95
Sifabiie Resoly Relays		Lr2d-1305/1314 (0.63 ~ 1.0 / 7 ~ 10)	Lr2d-1316 (9 ~ 13)	Lr2d-1321 (12 ~ 18)	Lr2d-1322 (17 ~ 25)	Lr2d-1353 (23 ~ 32)	Lr2d-3355 (30 ~ 40)	Lr2d-3359 (48 ~ 65)	Lr2d-3361 (55 ~ 70)	Lr2d-3363 (63 ~ 80)	Lr2d-3365 (80 ~ 93)
Rating Rating		LP65

Ka'idar Aiki

Ka'idojin aiki na Motocin Magnetic na Magnetic shine yafi bisa ga tasirin filin magnetic da kuma ka'idar aiki na motar DC. Lokacin da filin sihiri na waje ya zo kusa da Sizon Sizewa na Magnetic, yana haifar da wani abu magnetic na Magnetic (E.g., reed) a cikin canjin, yana sa ta rufe ko karya da buɗe-baya, don haka ke sarrafa budewa da rufewa da kewaya. Da zarar an rufe da'irar, yana gudana ta yanzu ta hanyar motar, yana haifar da shi don fara juyawa. DC Motors, a gefe guda, yi aiki akan ka'idar mai jagoranci yana motsawa cikin filin Magnetic ta hanyar karfin lantarki.

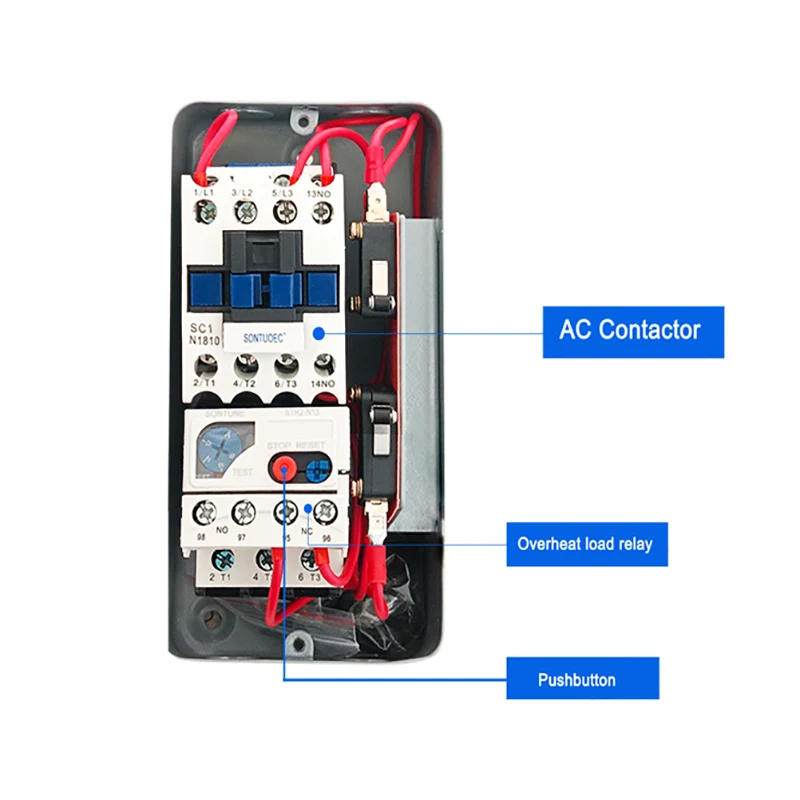

Babban kayan aiki

Canjin Magnetic: Yawancin lokaci ya ƙunshi ɓangaren magnetic da na'urar trigger, ana amfani da su don gano filayen magnetic na waje da sarrafa a kan da'irar.

Motar lantarki: Na'urar da ta canza makamashi na lantarki zuwa makamashi na inji kuma tana korar na'urori daban-daban ta hanyar juyawa.

Ikon sarrafawa: Amfani da siginar waje da sarrafa matsayin aikin magnetic da motar bas.
