Sontooc Highlifion Kayan Kayan Wuta na lantarki ana amfani da shi a cikin da'irori da aka ƙididdige har zuwa 95A, don yin & sarrafawa da sarrafa injin. A haɗe tare da toshe lamba ta taimako, na'urar jinkiri & Mayar da na'urai-inclocking da sauransu, ya zama jinkirin tuntuɓar, mai haɗa kai tsaye, mai karfafa hannu, star-delta farkon. Ya juya zuwa mai farautar lantarki lokacin da yake aiki tare tare da na'urar da aka dace da kai mai dacewa, wanda zai iya kare murabus da'ira. An samar da lambobin sadarwa bisa ga IEC609477-4-1.

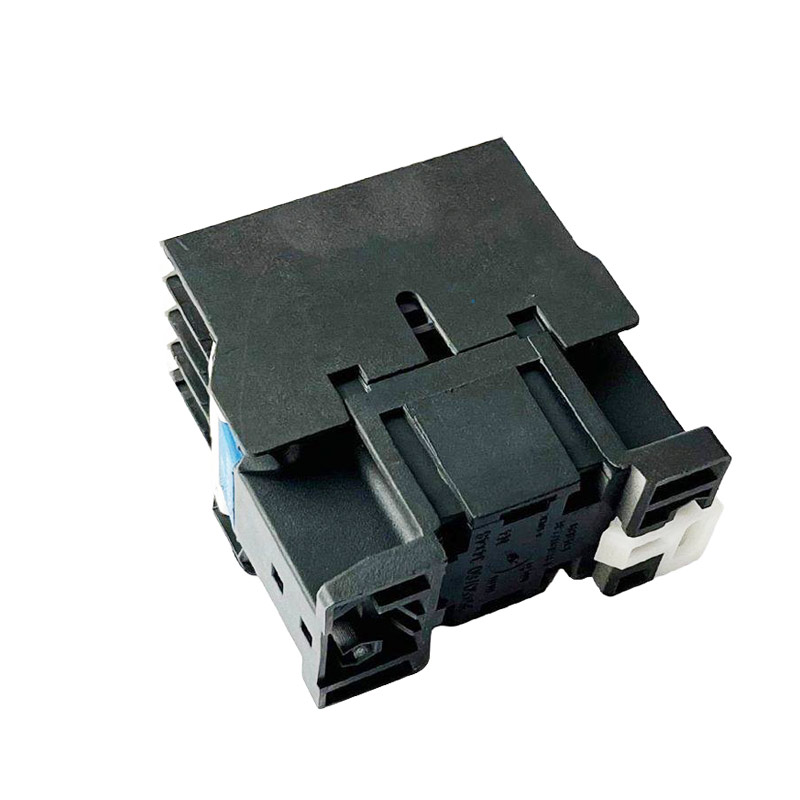

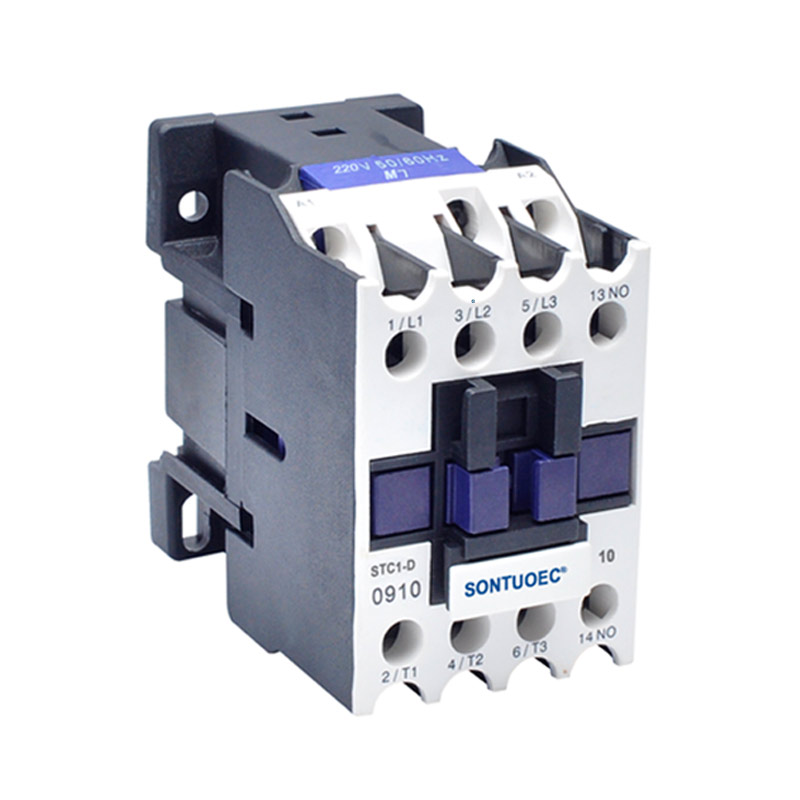

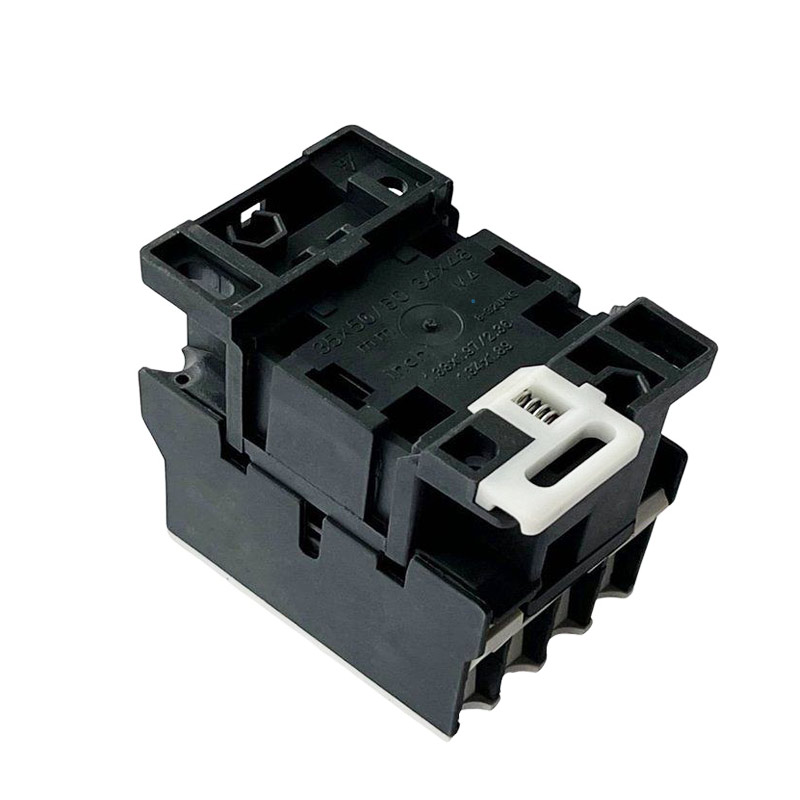

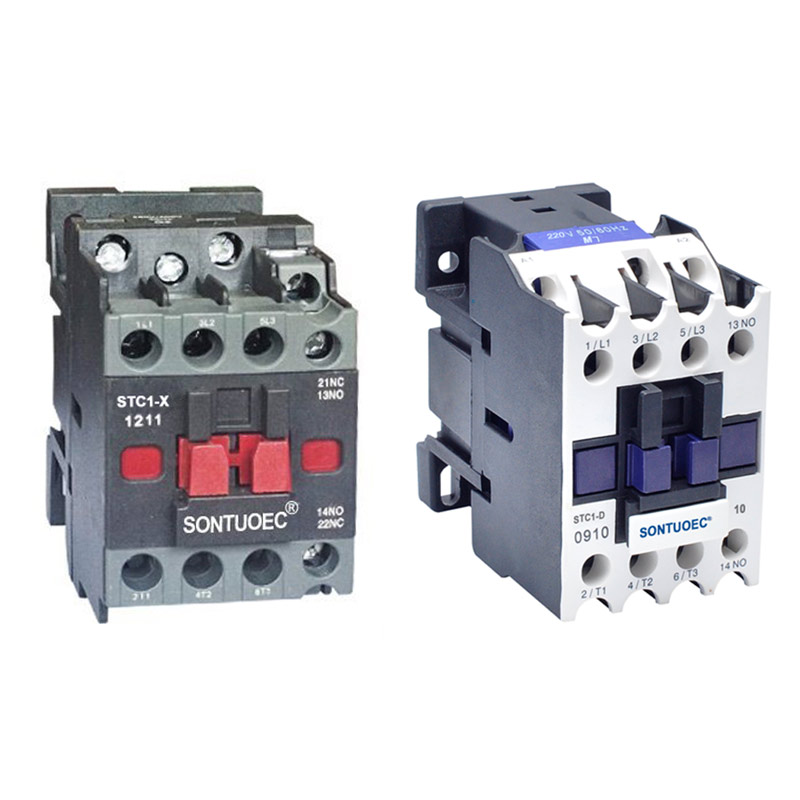

Samfura:STC1-D

Aika tambaya

Bayanin Samfura

Iri		STC1-D09	STC1-D12	STC1-D18	STC1-D25	STC1-D32	STC1-D40	STC1-D50	STC1-D65	STC1-D80	STC1-D95
Rated Attom na yanzu (a)	AC3	9	12	18	25	32	40	50	65	80	95
Rated Attom na yanzu (a)	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Standardancin wutar lantarki 3-Motoci 50 / 60hz a cikin rukuni na AC-3	220 / 230v	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380 / 400v	4	5.5	7.5	11	15	18.5	22	30	37	45
	415v	4	5.5	9	11	15	22	25	37	45	45
	500v	5.5	7.5	10	15	18.5	22	30	37	55	55
	660 / 690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Doctor Deck na yanzu (a)		20	20	32	40	50	60	80	80	125	125
Rayuwar lantarki	AC3 (X104)	100	100	100	100	80	80	60	60	60	60
Rayuwar lantarki	AC4 (X104)	20	20	20	20	20	15	15	15	10	10
Rayuwar inji (X104)		1000	1000	1000	1000	800	800	800	800	600	600
Yawan lambobin sadarwa	3P + A'a					3P + nc + babu

Sifofin samfur

Babban aiki: An tsara yawancin ayyukan lantarki don zama mafi karami, mafi ƙarancin kuɗin da aka rufe a cikin masana'antar, tare da ƙimar kuɗi na yanzu zuwa 500A (a 320vdC).

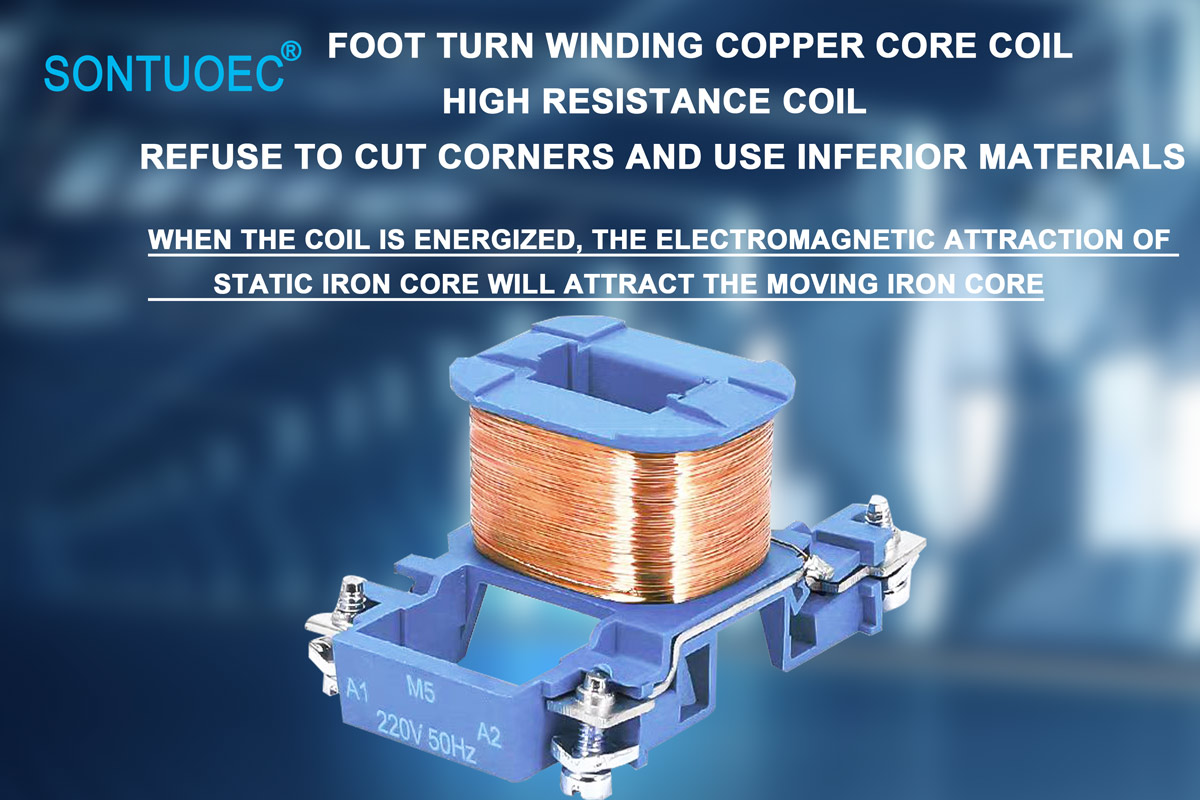

Ingantaccen makamashi: ginanniyar haɗin gwiwar COIL yana aiki ne kawai 1.7W) kuma zai iya iyakance juyawa ga albarkatun ƙasa (EMF) zuwa 0V.

Aminci: An rufe samfurin don amincin ciki kuma yana iya aiki a cikin abubuwan fashewa ko matsananciyar ƙasa ba tare da oxidization ko lambobin sadarwa ba, gami da rashin aiki.

Abubuwan da aka bayar: Ana bayar da lambobin sadarwar auxiary don saka idanu da saka idanu na lambobin sadarwa. Hakanan yana da fasali mai sassauci mai sassauƙa / haɗin wutar lantarki.
