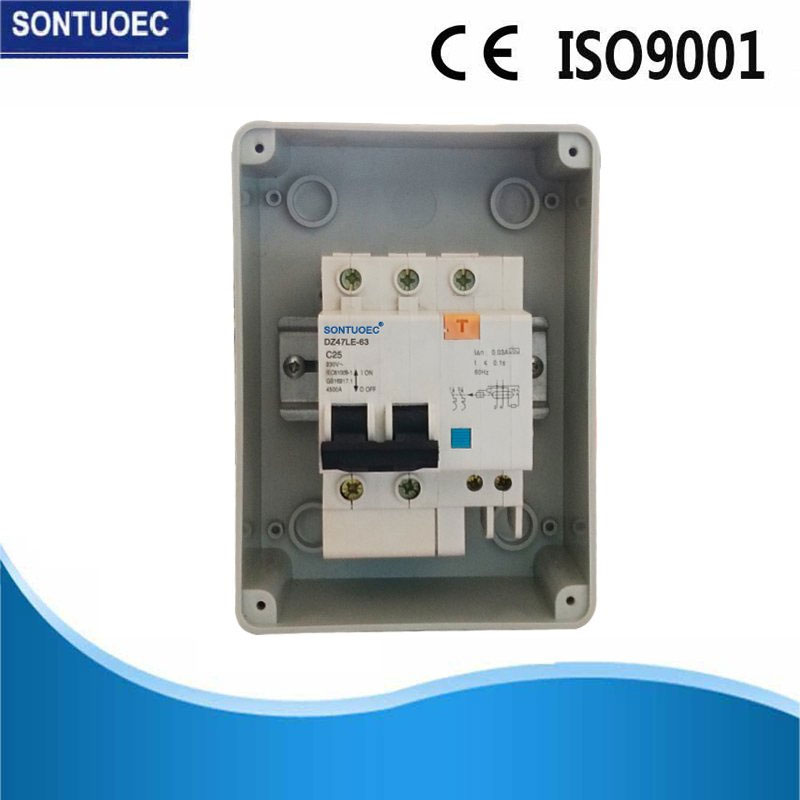

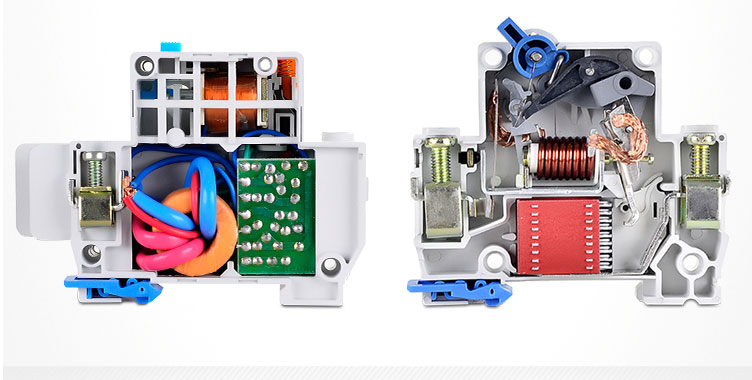

Dz47le-63 Jerin Haɗaɗɗen Girman Bayyanar Wutar Wuta RCBO

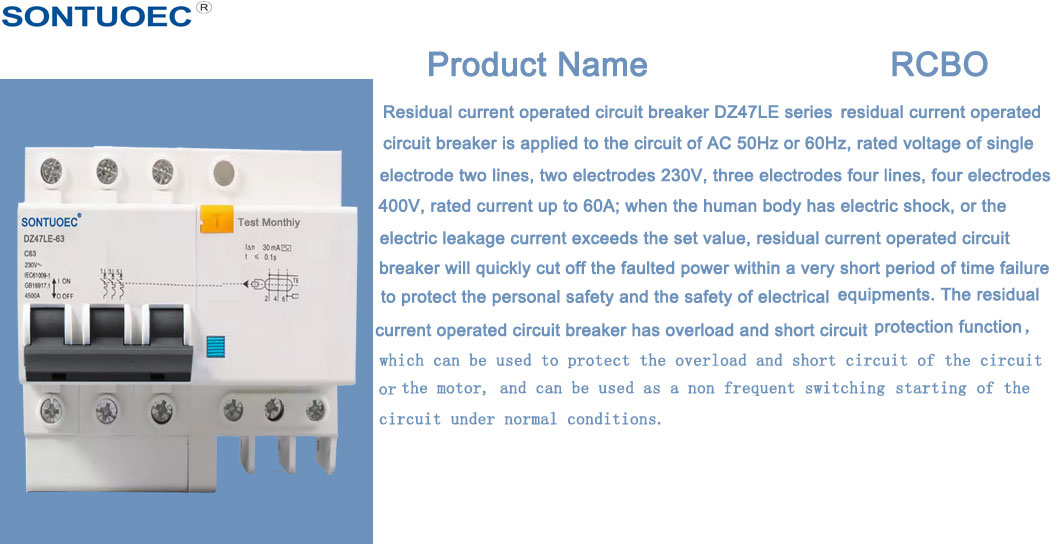

1.RCBO galibi ana amfani da shi a cikin AC 50Hz(60Hz), rated ƙarfin lantarki 230/400V, rated halin yanzu 6A zuwa 63A ƙananan ƙarfin lantarki tasha rarraba tsarin. RCBO daidai yake da aikin MCB+RCD; Ana amfani da shi don kariya ta girgiza wutar lantarki da kariyar tuntuɓar ɗan adam kai tsaye, kariyar kayan wutar lantarki lokacin da jikin ɗan adam ya taɓa wutar lantarki ko ruwan ɗigon hanyar sadarwar lantarki ya wuce ƙimar da aka kayyade, kuma sama da kaya da gajeriyar kariya; Hakanan yana iya zama ma'aikacin da ba na mitoci ba a cikin da'ira, ana amfani da shi sosai a wurin zama da yanki na kasuwanci. Ya dace da daidaitattun IEC61009-1. Ana amfani da 2.MCB a cikin AC50/60Hz, ƙimar ƙarfin lantarki na 230V3, 4 sanduna 400V, ƙididdiga na yanzu zuwa 63A don ɗaukar nauyi da kariya ta gajeriyar kewayawa da kuma sauyawa maras lokaci a ƙarƙashin yanayin al'ada. Ana amfani da shi sosai don masana'antu, kasuwanci da dangi. Wannan samfurin ya dace da ma'aunin IEC60898. 3.RCCB yana cikin jituwa tare da ma'auni na IEC61008. Yana iya yanke da'irar kuskure nan da nan a kan lokaci na girgiza haɗari ko ƙasa yayyo na trunkline.Thus shi ne dace don kauce wa girgiza hadarin da wuta lalacewa ta hanyar ƙasa leakage.It za a iya amfani da da'irori har zuwa guda lokaci 240V,V0 lokaci 50.6 ko 415.

Samfura:DZ47LE-63

Aika tambaya

Bayanin Samfura

Ƙayyadaddun bayanai:

Farashin Farashin RCBO

	Daidaitawa	Naúrar	IEC / EN 61009-1
Lantarki	Yanayin		Nau'in lantarki
fasali	Nau'in (nau'in nau'in igiyar ruwa na ɗigon ƙasa da aka gane)		A, AC
	Thermo-magnetic saki halayyar		B,C,D
	rated halin yanzu ln	A	6,10,16,20,25,32,40,63
	Sandunansu	P	1P+N, 3P+N
	Ƙimar wutar lantarki Ue	V	AC 230, 400
	Ƙididdigar hankali I△n	A	0.01, 0.03, 0.1, 0.3, 0.5
	Ƙimar saura da iya aiki da karya l△m	A	500
	Ƙarfin gajeren kewayawa Icn	A	6000
	Lokacin hutu ƙarƙashin I△n	S	≤0.1
	Ƙididdigar mitar	Hz	50/60
	Ƙimar ƙwaƙƙwalwar ƙarfin ƙarfin ƙarfin lantarki (1.2/50)Uimp	V	4000
	Dielectric gwajin ƙarfin lantarki a ind.Freq na 1min	kV	2
	Insulation ƙarfin lantarki Ui	V	250
	Matsayin gurɓatawa		2
Siffofin injina	Rayuwar wutar lantarki		4000
	Rayuwar injina		10000
	Mai nuna kuskure na yanzu		EE
	Digiri na kariya		IP20
	Yanayin yanayi	ºC	-5 ~ + 40 (Aikace-aikace na musamman don Allah koma zuwa
	(tare da matsakaita na yau da kullun ≤35ºC)	ºC	gyaran yanayin zafi)
	Yanayin ajiya	ºC	-25-70
Shigarwa	Nau'in haɗin tasha		Cable/Pin-type basbar bas/U-nau'in basbar
	Girman tasha saman/kasa don kebul	mm2	25
	Girman tasha saman/kasa don kebul	AWG	5月18日
	Girman tasha sama/ƙasa don mashaya bas	mm2	25
	Girman tasha sama/ƙasa don mashaya bas	AWG	3月18日

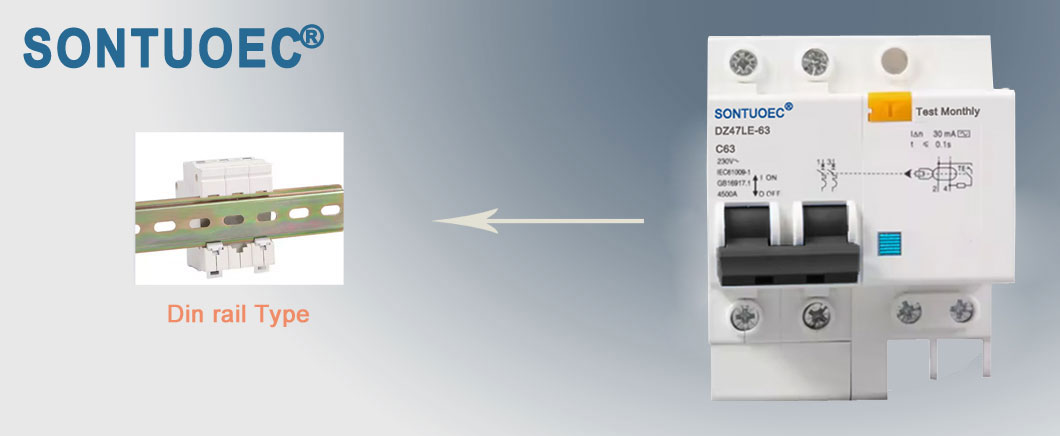

	Yin hawa		A kan DIN dogo EN 60715 (35mm) ta hanyar na'urar shirin bidiyo mai sauri
	Haɗin kai		Daga sama

Duban Hanya:

1. Samar da kariya daga kuskuren duniya / zubewar halin yanzu da aikin keɓewa

2. High short-circuit halin yanzu jure iya aiki3. Ana iya amfani da tasha da haɗin busbar nau'in fil/fork

5. Cire haɗin da'irar ta atomatik lokacin da kuskuren duniya / yayyowar halin yanzu ya faru kuma ya wuce ƙimar ƙima.

6. Mai zaman kanta na samar da wutar lantarki da wutar lantarki na layi, kuma ba tare da tsangwama na waje ba, canjin wutar lantarki.

MCB

Samfura	MCB
Daidaitawa	Saukewa: IEC60898-1
Sanda	1P,2P,3P,4P
Lanƙwasa Tafiya	B,C,D
Ƙarfin Ƙarfin kewayawa (Icn)	3KA,4.5KA,6KA,10KA
Ƙimar Yanzu (Ciki)	1,2,4,6,10,16,20,25,32,40,50,63A
Ƙimar Wutar Lantarki (Un)	AC230(240)/400(415)V
Magnetic sakewa	B lankwasa: tsakanin 3 da 5 In
	B lankwasa: tsakanin 3 da 5 In
	C lankwasa: tsakanin 5 da 10 in
	C lankwasa: tsakanin 5 da 10 in
	D lankwasa: tsakanin 10 zuwa 14 in
	D lankwasa: tsakanin 10 zuwa 14 in
Electro-mechanical juriya	fiye da 6000 cyclesC

RCCB


	Daidaitawa	Naúrar	IEC / EN 61008-1
Lantarki	Nau'in (nau'in nau'in igiyar ruwa na ɗigon ƙasa da aka gane)		AC, A
Siffar	rated halin yanzu In	A	16,25,32,40,63
	Sandunansu	P	2,4
	Ƙimar wutar lantarki Ue	V	230/400
	Ƙididdigar hankali I n	A	0.01,0.03,0.1,0.3
	Insulation ƙarfin lantarki Ui	V	500
	rated saura yin da	A	630
	karya iyawa I m
	Gudun kewayawa I c	A	4500/6000
	Farashin SCPD	A	6000
	Lokacin hutu ƙarƙashin I n	s	<0.1
	Ƙididdigar mitar	Hz	50/60
	Matsayin gurɓatawa		2
MakanikaI	Rayuwar wutar lantarki	t	4000
fasali	MechanicaI Ife	t	20000
	Alamun kuskure na yanzu		Ee
	Digiri na kariya		IP20
	Yanayin yanayi	C	Daga -25C zuwa 40C
	(tare da matsakaicin rana 35)
	Yanayin ajiya	C	Daga -25C zuwa 70C

FAQ

Q 1. menene lokacin biyan kuɗi? A. Mun yarda da TT,30% ajiya da kuma 70% balance aisnt kwafin BL

Q 2. yaya lokacin bayarwa yake?

A. yawanci zai ɗauki kimanin kwanaki 25 don samarwa

Q 3. gaya mani mizanin kunshin?

A. Yawanci kwali ne, amma kuma za mu iya tattara shi bisa ga buƙatun ku.

Q 4.Za ku yarda don amfani da tambarin mu?

A. Idan kana da adadi mai kyau, babu matsala don yin OEM.

Q5. Zan iya ɗaukar wasu samfurori?

A: Ee, muna goyan bayan ɗaukar samfurori kafin sanya oda. Kawai jin daɗin tuntuɓar mu idan kuna da wasu buƙatu.

Q6. Shin asalin masana'anta ne?

A: Ee, muna da namu masana'anta.

Q7. Ta yaya za ku tabbatar da ingancin samfuran?

A: Za mu yarda da ka'idojin ingancin ƙasa da ƙasa don bincika kowane abu kafin barin masana'antar mu. Tuntuɓi mu Godiya da karantawa. Idan kowane samfurin ya dace da buƙatar ku. Barka da aiko mana da imel ko ta Wechat da WhatsApp. Muna da tabbacin za a iya kula da duk wani bayanin ku ba tare da wani bata lokaci ba.
