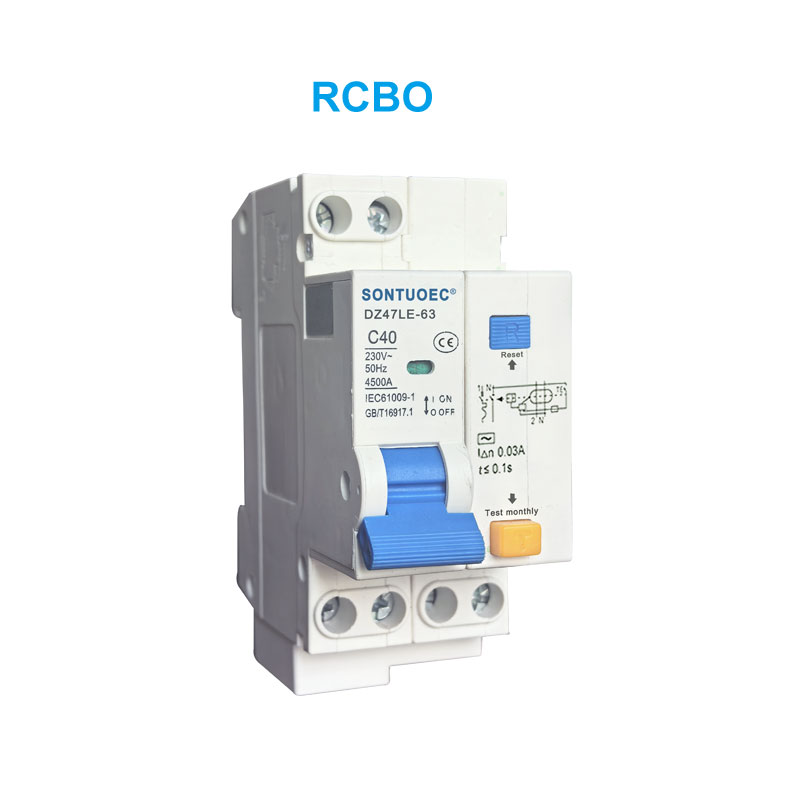

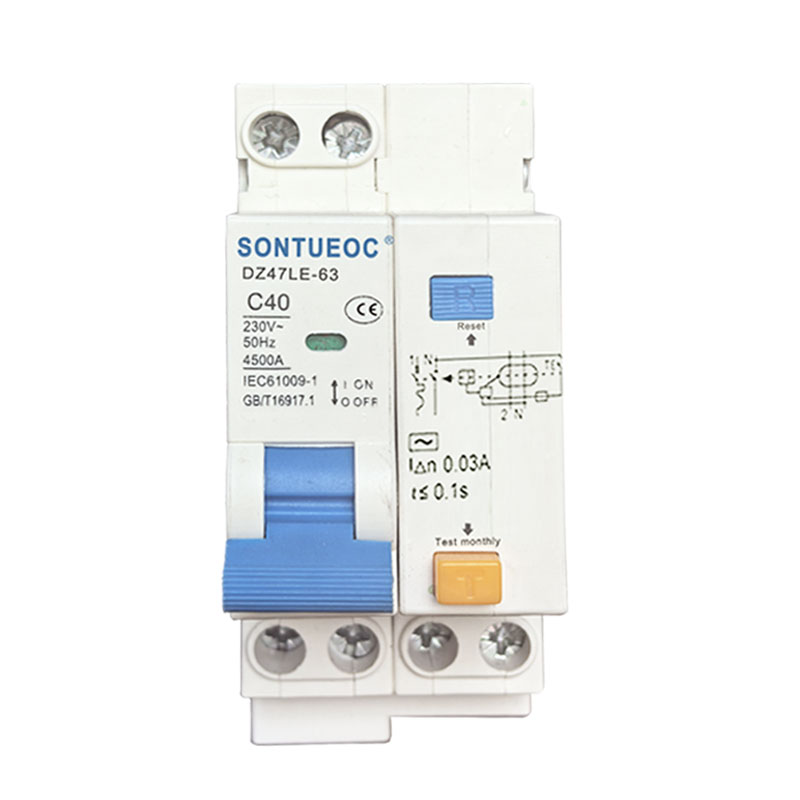

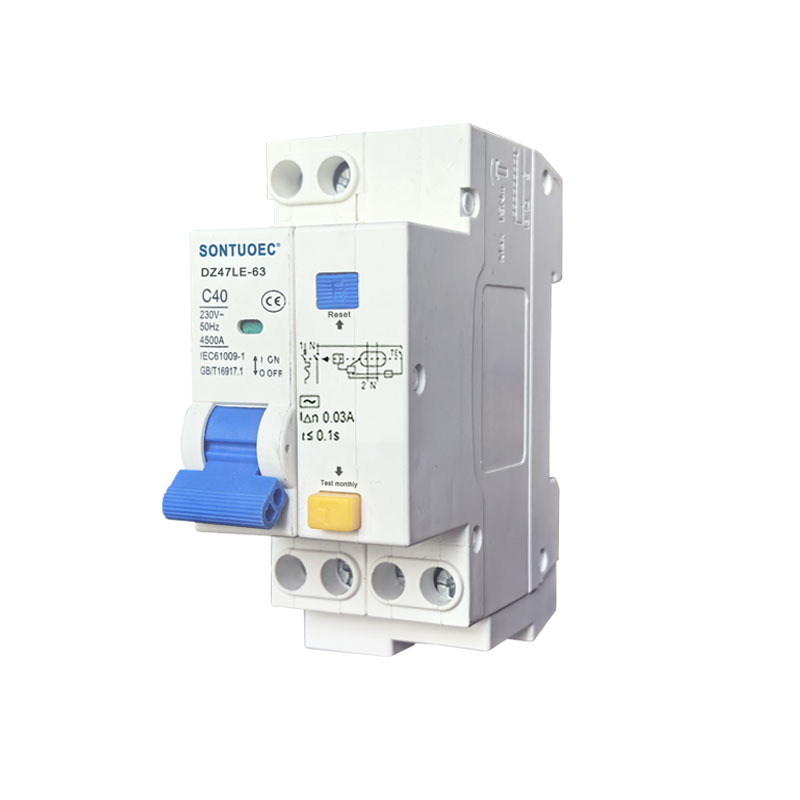

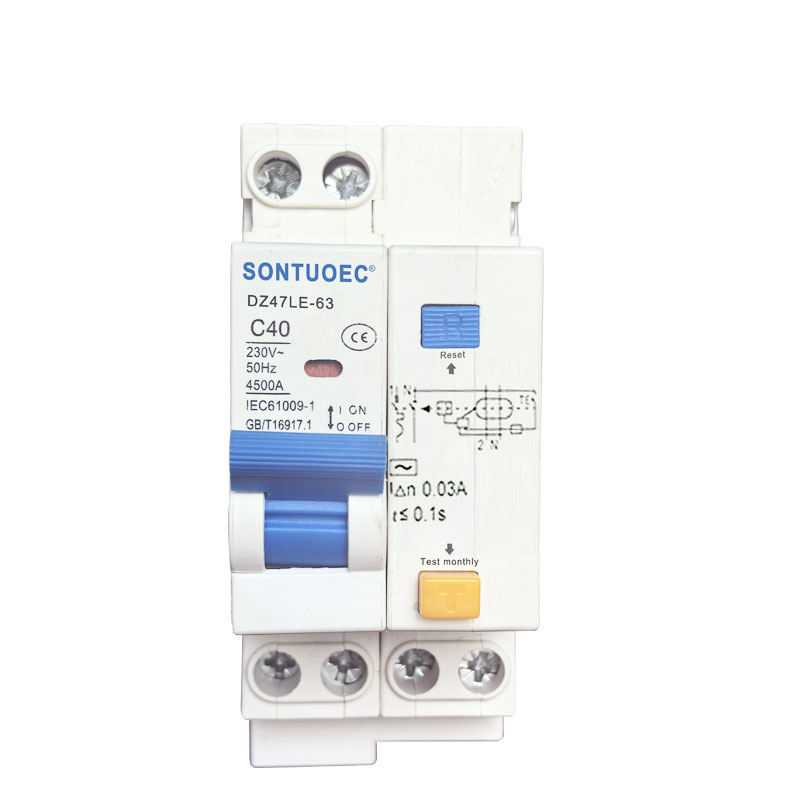

Dz47le-63 RCBO Series Leakage Mai Sake Zagaye na Yanzu

SONTUOEC ita ce daya daga cikin masu samar da kayayyaki/masu sana'a na kasar Sin da suka kware wajen kera kananan na'urorin lantarki daban-daban.DZ47LE mai amfani da sa layin AC 50/60Hz mai ƙimar ƙarfin wutar lantarki 230V na sandar sanda ɗaya waya biyu, 2 pole ko 4300 re pole. 4 sandar da ƙididdige na yanzu har zuwa 63A. Yana na kare layi da motar daga mafi yawa da gajeriyar kewayawa Haka kuma za’a iya amfani da sa da canzawar layi da da farawa motoci marasa yawa.Yana cika da ka'idodin IEC61009.1.

Samfura:DZ47LE-63

Aika tambaya

Bayanin Samfura

Ma'aunin Fasaha:

Ƙimar Wutar Lantarki (V)	Ƙididdigar Harka Inm(A) Yanzu	Sandunansu	Neutra	rated CurrentIn(A)	Ƙarfafa Ƙarfafa Ƙarfin Ƙarfin Ƙarfafawa Icu(KA)		Ƙididdigar Ƙirar Ƙira na Yanzu	Ƙididdigar Ƙarƙashin Ƙarƙashin Ƙarƙashin Yanzu (mA)
Ƙimar Wutar Lantarki (V)	Ƙididdigar Harka Inm(A) Yanzu	Sandunansu	Layi	rated CurrentIn(A)	Breaking Capacity Icu(KA)	COS	(mA))	Ƙididdigar Ƙarƙashin Ƙarƙashin Ƙarƙashin Yanzu (mA)
230	6-63	1	N	6,10,16,	6	0.7	30,50,	15,25,
230	6-63	2		20,25,32,	6	0.7	100,300	50,150
400	6-63	3		40,50,63	6	0.7
400	6-63	3	N		6	0.7
400	6-63	4			6	0.7
230	6-63	1	N		4.5	0.8
400	6-63	2			4.5	0.8
400	6-63	3			4.5	0.8
400	6-63	3	N		4.5	0.8
400	6-63	4			4.5	0.8

DZ47LE Ragowar Mai Rarraba Wutar Lantarki na Yanzu tare da kariya mai wuce gona da iri (Electronic):

1. Aikace-aikace

Ma'aikata da kariya ta wuta

Kebul da kariya ta layi daga yin nauyi da gajerun kewayawa

2. Gabaɗaya dokoki don zaɓar RCBO:

a. Rated ragowar aiki na yanzu

A cikin ≤ 30 mA: ƙarin kariya a yanayin tuntuɓar kai tsaye A cikin ≤300 mA: kariya ta kariya ta wuta a yanayin magudanar ruwa

b.Ajin tafiya

Ajin AC - Ana tabbatar da tafiya don sinusoidal, madaidaicin igiyoyin ruwa, ko za'a yi amfani da su da sauri ko a ƙara a hankali.

c. Maƙarƙashiya

C lankwasa (5-10 In) kariya da kula da da'irori daga wuce gona da iri da gajerun kewayawa; kariya ga masu juriya da naɗaɗɗen kaya tare da ƙarancin inrush na halin yanzu.

D mai lankwasa (10-14 In) kariya da kula da da'irori a kan wuce gona da iri da gajerun kewayawa; kariya ga da'irori waɗanda ke ba da kaya tare da babban inrush na halin yanzu a rufewar da'irar (Transfoman LV/LV, fitilu masu fashewa).
