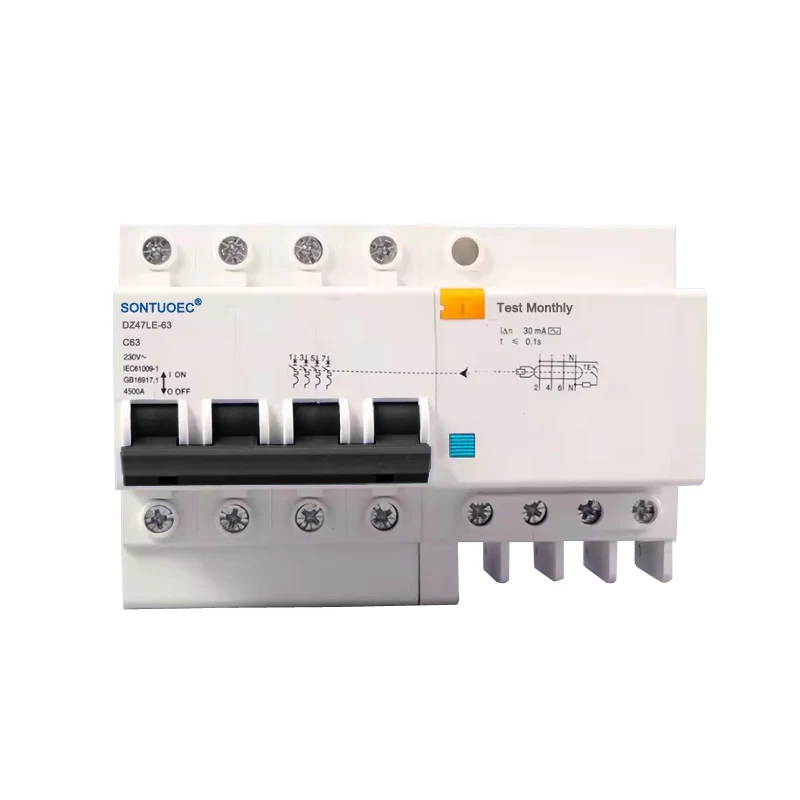

4P RCBO AC Nau'in

Nau'in AC na 4P RCBO shine mai jujjuya igiya 4 wanda ya haɗu da saura kariya na yanzu da ayyukan kariya mai wuce gona da iri, musamman an tsara shi don canza yanayin da'irori na yanzu (AC). Yana iya yanke wutar lantarki ta atomatik lokacin da aka gano ragowar halin yanzu (watau leakage current) a cikin da'irar don hana gobarar lantarki da haɗarin girgizar lantarki na sirri. A lokaci guda kuma, yana da aikin kariya mai wuce gona da iri wanda zai iya yanke wutar lantarki ta atomatik a yayin da aka yi nauyi ko gajeriyar kewayawa a cikin kewaye don kare amincin kewayawa da kayan aiki.

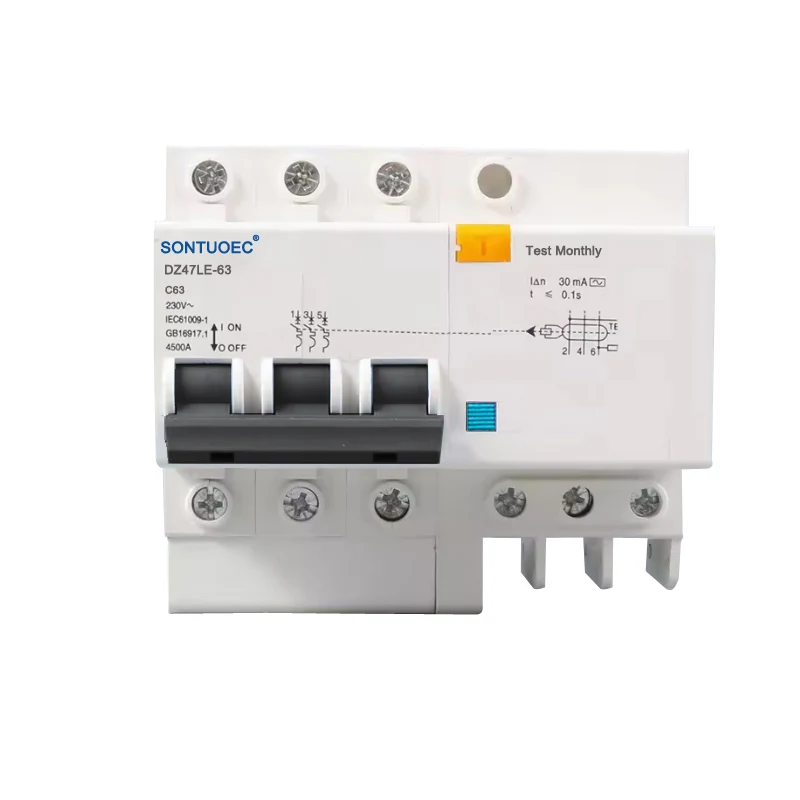

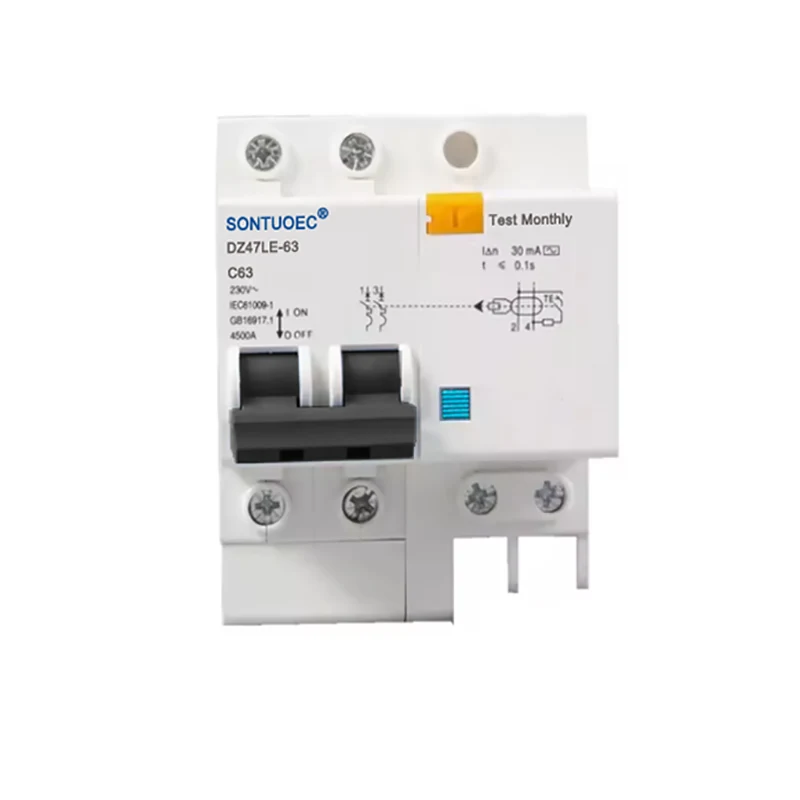

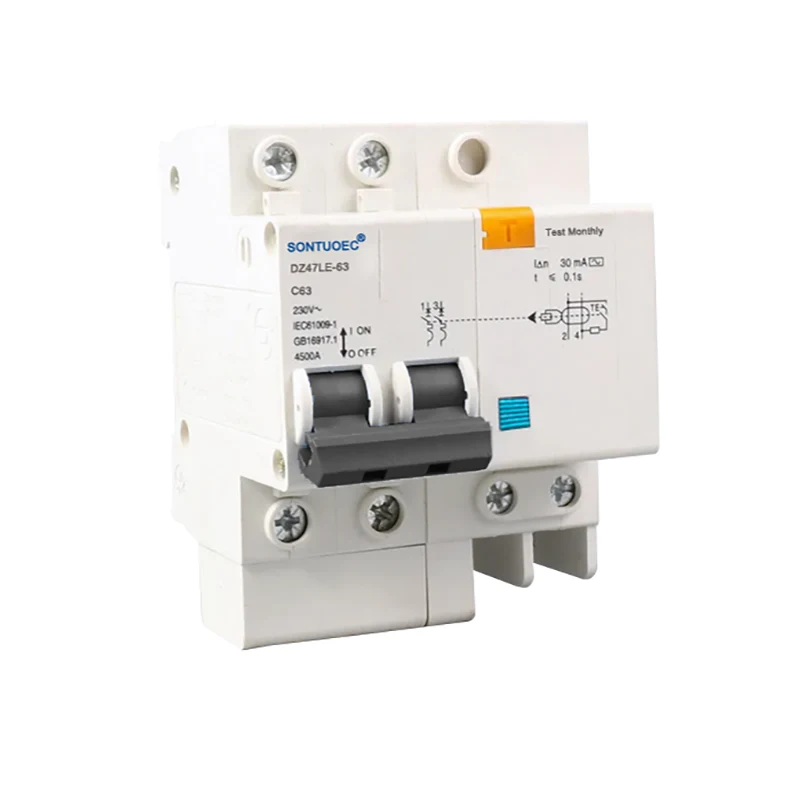

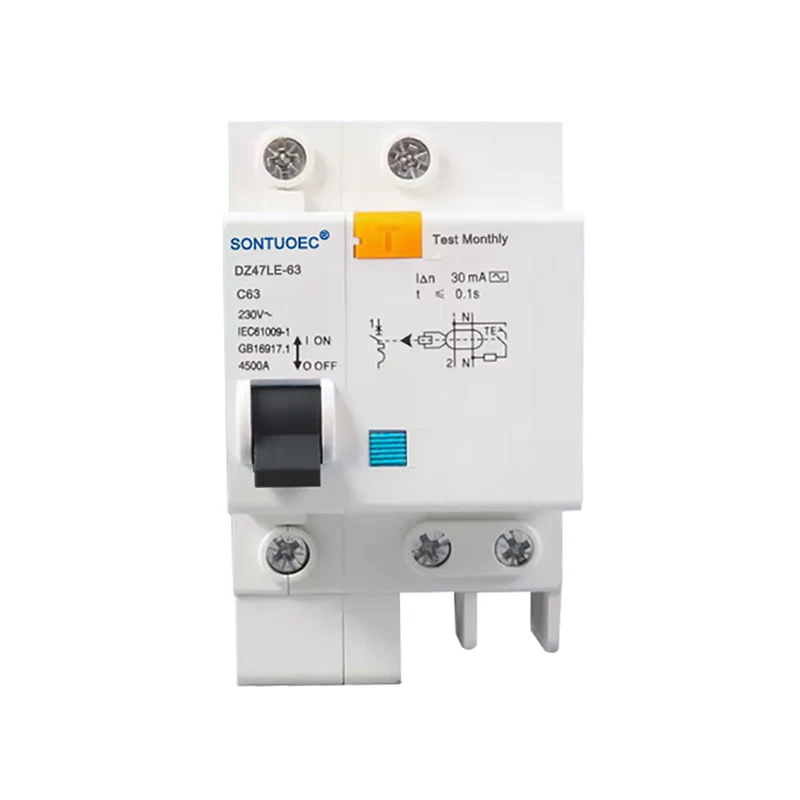

Samfura:DZ47LE-63

Aika tambaya

Bayanin Samfura

suna	Ragowar Mai Watsewar Wuta Tare da Kariya Mai Wuce
fasali	overload/gajeren kewaye/kariyar yabo
Sanda A'a	1P/2L, 2P/2L, 3P/3L, 3P/4L 4P/4L
Karya Ƙarfi	3kA,4.5KA,6KA
An ƙididdige Yanzu (A)	6A,10A,16A,20A,25A,32A, 40A,63A
Ƙididdigar ragowar aiki na yanzu:	10mA, 30mA, 100mA, 300mA, 500mA
Ƙimar Voltage(V)	240/415v
shigarwa	din dogo irin
misali	IEC61009-1, GB16917-1
takardar shaida	CE

Ka'idar aiki

Ka'idar aiki na nau'in 4P RCBO AC ya dogara ne akan jimlar vector na igiyoyin ruwa da kuma ka'idodin lantarki. Lokacin da igiyoyin da ke kewayen wuta (L) da sifili (N) wayoyi ba su kai girman girma ba, jimlar yawan igiyoyin igiyoyin igiyoyin da ke gefen farko na da'irar wutar lantarki ba sifili ba ne, wanda ke haifar da ƙarfin lantarki a cikin coil na biyu. Ana ƙara wannan ƙarfin lantarkin da aka jawo zuwa relay na lantarki, yana haifar da motsin motsi wanda ke haifar da jujjuyawar ƙarfi. Lokacin da kuskuren halin yanzu ya kai darajar aiki na yanzu na RCBO, wannan jujjuyawar ƙarfi zai haifar da armature a cikin relay na lantarki don yin watsi da karkiya, yana tura tsarin aiki don aiki da yanke da'ira na yanzu kuskure.

DZ47LE-63 jerin lantarki duniya yayyo kariya kewaye watse ya dace da guda lokaci zama kewaye na AC 50Hz/60Hz, rated ƙarfin lantarki 230V, da kuma rated halin yanzu 6A ~ 63A; 400V don da'irar lokaci uku na AC 50Hz/60Hz. Yana iya kare nauyin nau'in kewayawa da kuma gajeren kewayawa. Wannan samfurin yana da fa'idodi na ƙaramin ƙara, babban ƙarfin karyewa, waya mai rai da layin sifili an yanke su a lokaci guda, kuma yana kare mutum daga girgizawar wutar lantarki a yanayin wayar wuta da layin sifili da aka haɗa baya.

Ya dace da daidaitattun IEC61009-1,GB16917.1.

Siffa:

1) .Yana ba da kariya daga girgiza wutar lantarki, kuskuren duniya, leakage halin yanzu;

2) .Yana ba da kariya daga yin nauyi, gajeriyar kewayawa da ƙarfin lantarki;

3). Ƙananan ƙarami, babban ƙarfin karya; ana yanke wayoyi masu rai da sifili a lokaci guda;

4). Ƙananan girma da nauyi, sauƙi shigarwa da wayoyi, babban aiki mai dorewa

5). Samar da rashin aiki da rashin aiki wanda ya haifar da wutar lantarki nan take da halin yanzu na take nan take.

Fasaloli & Fa'idodi

Kariyar aiki da yawa: Nau'in AC na 4P RCBO ya haɗu da ragowar kariya ta yanzu da kariya ta wuce gona da iri don samar da cikakkiyar kariya ga kewayawa da kayan aiki.

Babban hankali: Kariya mai mahimmanci daga aikace-aikacen kwatsam ko jinkirin tashiwar ragowar sinusoidal AC halin yanzu yana tabbatar da lalatawa.

Faɗin aikace-aikacen: Ya dace da da'irori na AC a cikin gida, masana'antu da tsarin rarraba wutar lantarki na kasuwanci, musamman don wayar-wuta-ɗaya-sifili.

Sauƙi don shigarwa da kiyayewa: ƙirar tsari mai ma'ana, mai sauƙin shigarwa, kuma a lokaci guda mai sauƙin aiwatar da kulawa da haɓakawa.

Yanayin aikace-aikace

4P RCBO AC Type ana amfani dashi sosai don kariyar kewayen AC a cikin gidaje, ofisoshi, wuraren kasuwanci da wuraren masana'antu. Ya dace musamman don aikace-aikacen da ke buƙatar kariya na duka wayoyi na Wuta da Zero, kamar na'urori masu haske, da'irori na soket da kariya na kayan aiki kamar injina.

4P RCBO AC Type
